DOI: 10.14714/CP78.1278

Interactive and Multivariate Choropleth Maps with D3

Carl M. Sack, University of Wisconsin–Madison | cmsack@wisc.edu

Richard G. Donohue, University of Kentucky | rgdonohue@uky.edu

Robert E. Roth, University of Wisconsin–Madison | reroth@wisc.edu

ASSUMED SKILLS AND LEARNING OUTCOMES

The following tutorial describes how to make an interactive choropleth map using the D3 (Data-Driven Documents) web mapping library (d3js.org). This tutorial is based on a laboratory assignment created in the fall of 2014 for an advanced class titled Interactive Cartography and Geovisualization at the University of Wisconsin–Madison. This is the second of two On the Horizon tutorials on web mapping and extends a previous tutorial that used the Leaflet JavaScript library (see Donohue et al. 2013; dx.doi.org/10.14714/CP76.1248). Fully commented source code for both tutorials is available on GitHub (github.com/uwcart/cartographic-perspectives). All code is distributed under a Creative Commons 3.0 license and available for unconditional use, with the exception of the files in the lib directory, for which certain license conditions are required as described in the file LICENSE.txt.

This tutorial assumes literacy in JavaScript, HTML, and CSS programming for the web. In particular, you should be comfortable with the manipulation of JavaScript arrays and objects. Free tutorials and reference documentation for these languages are available at www.w3schools.com. Additionally, D3 makes heavy use of jQuery-style DOM element selection and dot syntax (jquery.com). It is further assumed that you are familiar with in-browser development tools such as those provided by Google Chrome (developers.google.com/chrome-developer-tools), Mozilla Firefox (developer.mozilla.org/en-US/docs/Tools), and Firebug (getfirebug.com). An important limitation of D3 is its incompatibility with Microsoft’s Internet Explorer browser prior to version 9; use of Internet Explorer below version 10 is not recommended. Finally, the tutorial assumes you have set up a development server running either remotely or as a localhost. MAMP for Mac (www.mamp.info/en) and WAMP for Windows (www.wampserver.com/en) are useful for this.

After completing the tutorial, you should be able to:

• work with the TopoJSON data format;
• use the D3 library to publish a multivariate choropleth map to the web; and
• implement interactivity, including attribute selection, mouseover highlighting, and dynamic labels.

1. FINDING AND FORMATTING MULTIVARIATE INFORMATION

The first step is assembly of appropriate multivariate (i.e., multiple attributes enumerated over the same set of spaces) information to portray in a choropleth map. Your data should be numerical, with attributes (or fields) organized as separate table columns and each enumeration unit (region) represented by a single table row. Because enumeration units typically vary in size and shape, it is important to normalize the attribute information according to a relevant variable (i.e., divide by area, population, etc.).

Although they could be combined into one file, this tutorial maintains the attribute data and geographic data (i.e., the linework) as separate files in order to demonstrate how to join data from disparate sources together using JavaScript. This is useful when drawing on data from dynamic web services. Prepare your attribute information as a .csv file using spreadsheet software (e.g., Microsoft Excel, Google Sheets, OpenOffice Calc). In addition to attribute columns, the file should include columns for a unique ID, the name of each enumeration unit, and a code that can be linked to the geographic dataset.

Figure 1 provides an example multivariate attribute dataset for the regions of France. The attribute “admin1_code” will be used to link the attribute dataset to the geographic dataset in the code. This is a dummy dataset with no meaning in the real world; you should replace it with data from a phenomenon that is of interest to you. To avoid problems in your code later on, be sure the column names are logical and do not contain spaces or start with a number or special character. These headers will be used as keys to reference the data values in your code.

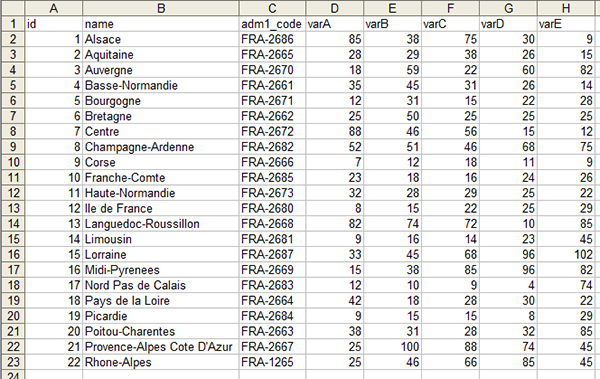

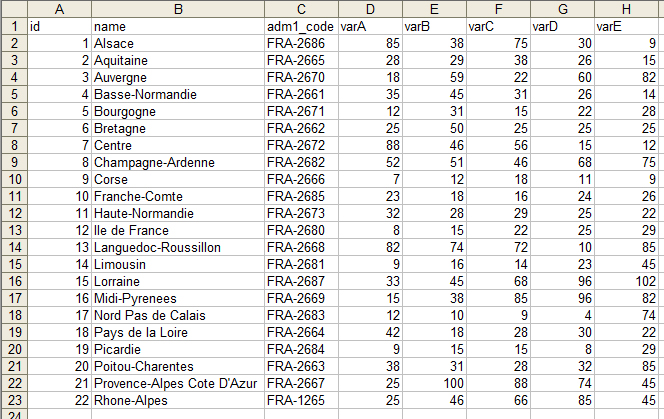

Figure 1. An example multivariate attribute dataset.

Next, prepare the geographic dataset in GIS software. For this tutorial, you will convert your geography to TopoJSON format (github.com/mbostock/topojson/wiki). TopoJSON is similar to GeoJSON, introduced in the Leaflet tutorial, but it can have significantly reduced file sizes and also stores topology: the spatial relationships of features. Both are variants on JSON, which stands for JavaScript Object Notation. TopoJSON structures each map feature as a series of arcs, or lines connecting sets of nodes, with the node sets stored in a separate object that indexes the arcs, and a transform equation that situates the nodes in the coordinate reference system. This format greatly reduces the data volume and improves rendering efficiency by storing each arc only once, rather than duplicating arcs along shared edges. The lightweight TopoJSON library, available from github.com/mbostock/topojson, is required to translate the TopoJSON format for use by D3 or any other web mapping library that can utilize GeoJSON files.

The sample geography datasets used in this tutorial (EuropeCountries.topojson and FranceRegions.topojson, included in the tutorial source code) were prepared using two shapefiles downloaded from the Natural Earth website (www.naturalearthdata.com): one with the nations of Europe as a whole, and one with the regions of France. A number of technologies may be used to convert data to TopoJSON format, including the TopoJSON command line tool (available from the wiki cited above), MapShaper (mapshaper.com), and GeoJSON.io (geojson.io). To reduce file size, all attribute fields were removed from the original shapefiles except adm1_code in the regions shapefile and name_long in the countries shapefile. The shapefiles were converted into TopoJSON files by first using QGIS to save them as GeoJSON format, then using MapShaper to convert the GeoJSON to TopoJSON files (MapShaper will not preserve attributes if used to directly convert a shapefile to TopoJSON). Note that the original shapefiles must use an unprojected WGS84 coordinate reference system (EPSG:4326) for the resulting TopoJSON files to work with D3.

The object structure of the TopoJSON format includes an outer-level object with the key objects that is not included in the GeoJSON specification. For this tutorial, you will need to ensure that each GeometryCollection object (analogous to the FeatureCollection level of a GeoJSON, or layers in a shapefile) has a key that is a logical name for the feature layer represented by that GeometryCollection, as shown in Figure 2.

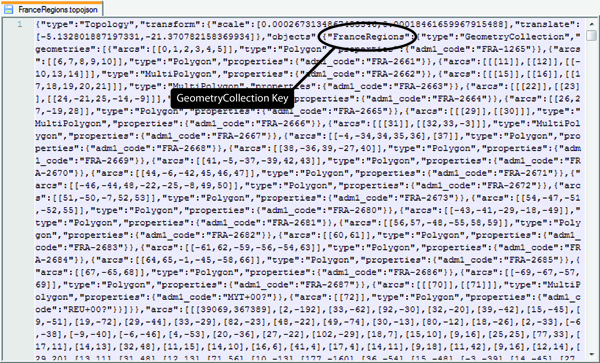

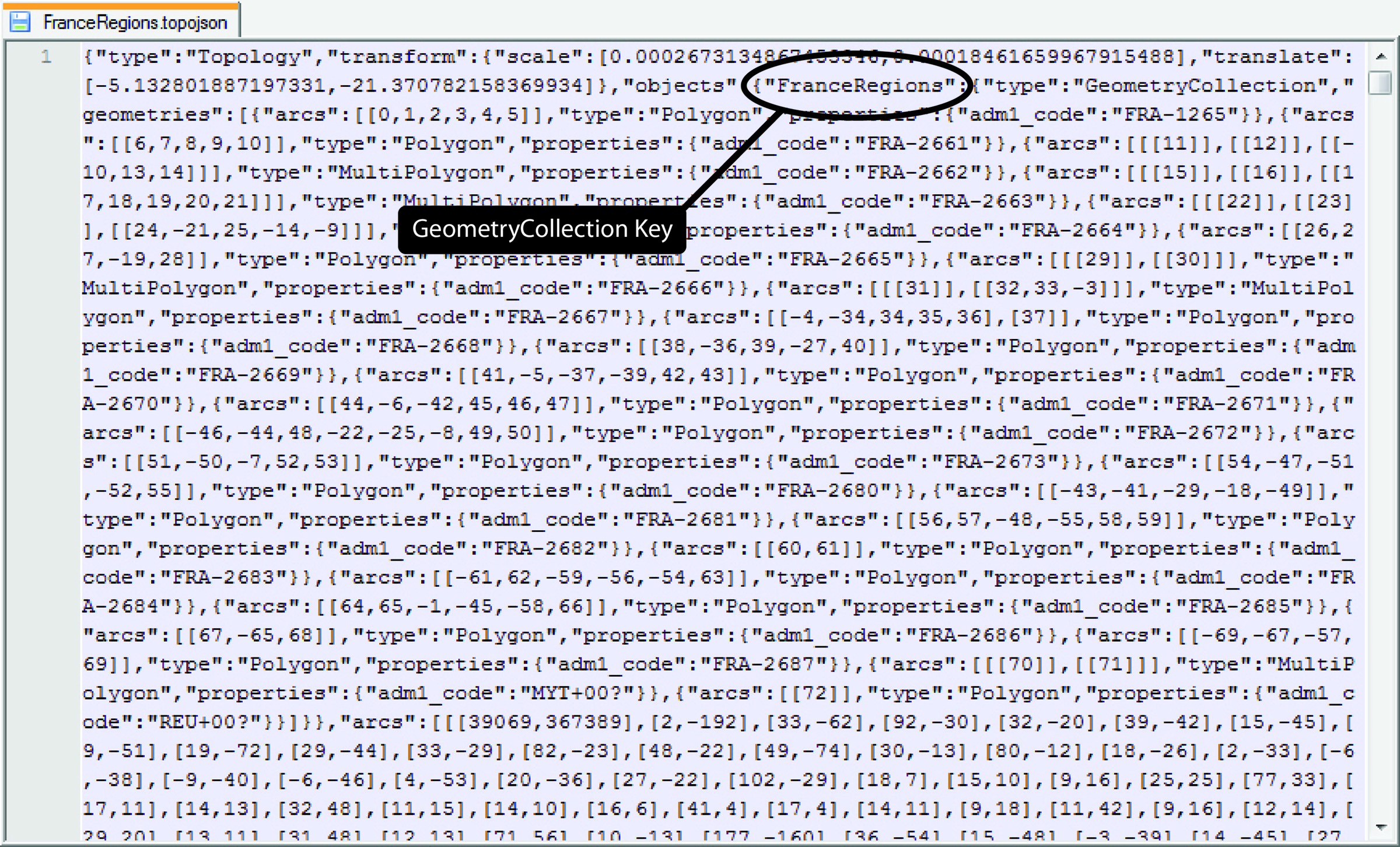

Figure 2. Manually rename the objects in your TopoJSON file for reference in your code.

2. PREPARING YOUR DIRECTORY STRUCTURE AND BOILERPLATE HTML

With your .csv and TopoJSON (.topojson) files prepared, it is now time to start building your map! Create a directory that includes folders named data, css, js, and lib. Because you will be loading data from the local directory asynchronously (after the first code has executed), you should use a development server or live preview function of your development software to view your website in the browser. In the website directory, create three new files named index.html (root level), style.css (css folder), and main.js (js folder). Copy your newly created .csv and .topojson files into the data folder. Add the boilerplate HTML code provided in Example 1 to the index.html file.

After configuring your directory, acquire three .js files from Bostock’s GitHub account: (1) d3.v3.js (github.com/mbostock/d3), containing the D3 visualization library, (2) topojson.v1.min.js for parsing your TopoJSON file (github.com/mbostock/topojson), and (3) queue.js (github.com/mbostock/queue), which will help with asynchronously loading the data. Save these files to your lib folder and link to them in index.html (EX1: 11–13).

3. LOADING YOUR TOPOJSON FILES INTO THE BROWSER

The next step is loading the geographic information assembled in your .topojson files. One of the excellent code classes provided by D3 includes several methods for loading various data formats using AJAX (Asynchronous JavaScript and XML) and parsing the contained information into JavaScript arrays. The loaders used here are d3.csv and d3.json. These methods work even better when used in conjunction with the queue.js plug-in, as explained below.

Because the data are loaded asynchronously—separately from the rest of the script, so the browser does not have to wait for the data to load before displaying the web page—all code that manipulates the asynchronous data must be contained within a callback function that is triggered only after the data are loaded. A callback function can be specified for each D3 data loader. The downside of this is that each loader requires a separate callback, requiring you to nest loaders and callbacks in order to manipulate data from multiple files.

Example 2 provides the logic needed to initialize the webpage and print the two .topojson files used in this example to the console. The queue() method (EX3: 12–16), which accesses the queue.js plug-in, allows data from multiple files to be loaded in parallel rather than in series, thus speeding up the process, and allows you to specify a single callback function for all data sources. Load the index.html page in your browser; you now will see the TopoJSON loaded to the DOM (Figure 3).

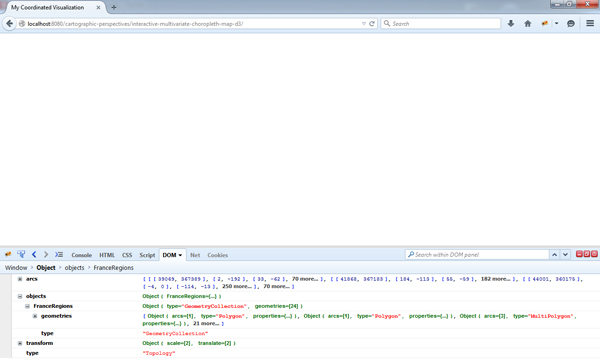

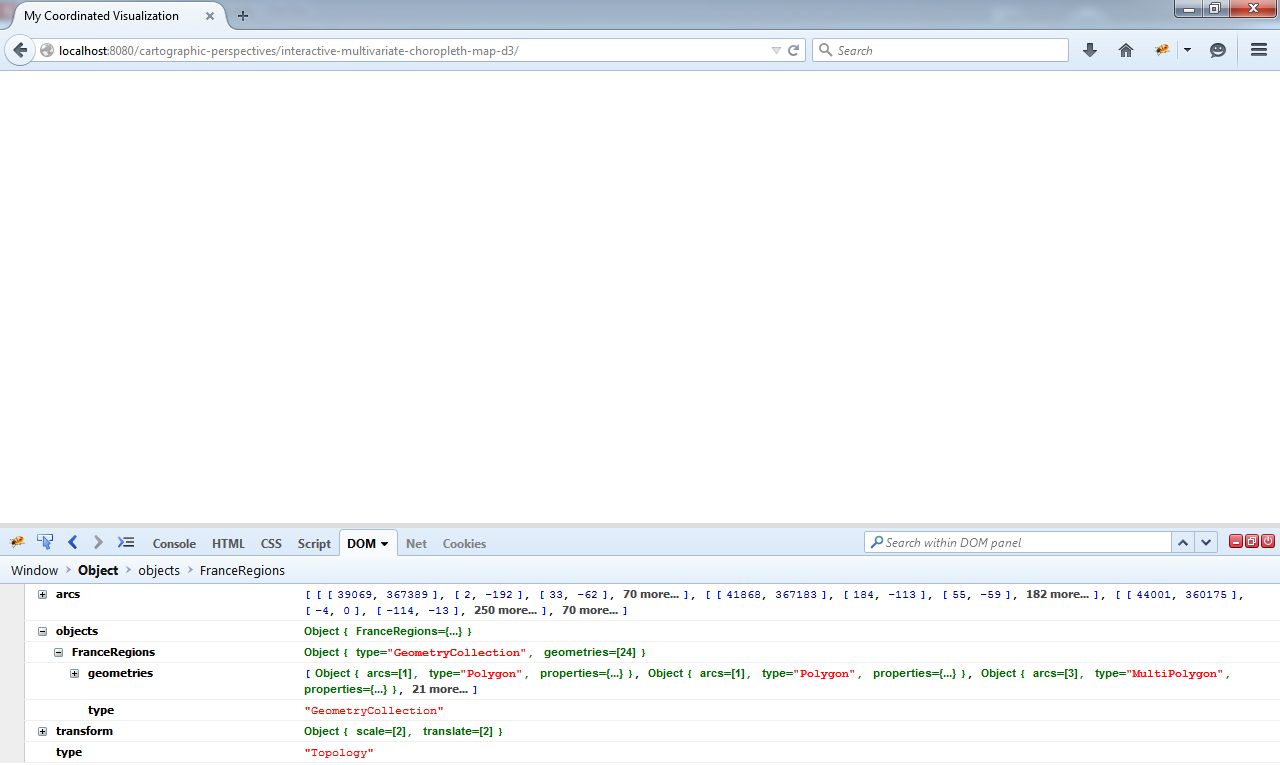

Figure 3. Printing a TopoJSON to the DOM. The object name should match the name given in Figure 2, which in turn should match the original shapefile.

4. DRAWING YOUR BASEMAP

Now that your information is loading properly, it is time to draw your basemap. The first step in creating a map or any other visualization using the D3 library is creation of an HTML element in which to draw the map. You need not create any elements in index.html; instead you will use D3 to create a blank svg element for the map and populate its content. It will be easier to interpret the following instructions in this subsection if you first review the SVG specification at www.w3.org/TR/SVG.

Start creation of the choropleth map by drawing its basemap, or geographic context. The basemap makes use of the geometry included in EuropeCountries.shp and converted to the EuropeCountries object in your first TopoJSON. All graphics associated with the choropleth view are drawn within the setMap() function, created in Example 2 and extended in Example 3. First, set the size of the map view in pixels (EX3: 3–5). Note the absence of px after each number, as used in stylesheets; dimensions given without units to SVG elements will automatically be translated to pixels.

Next, create an <svg> element to contain the choropleth map using the d3.select() function (EX3: 7–11). A D3 selection creates an array with one or more DOM elements to be operated on by subsequent methods. The string parameter passed to .select() references the DOM element to be selected and is therefore called the selector. The statement d3.select(“body”) is essentially the same as $(“body”) in jQuery; it passes the selector “body” and returns the first matching element in the DOM. Like jQuery, D3 uses dot syntax to string together function calls, an approach known as method chaining. This code selects the element of the DOM and adds an <svg> element, then sets the size to the values already stored in the width and height variables. This new <svg> element essentially is a container that holds the map geometry. Another method, selectAll(), can be used to select every matching element in the DOM as well as create new elements from data. It will be evoked later in the tutorial.

After creating the <svg> container, you then need to indicate how the geographic coordinates should be projected onto the two-dimensional plane (the computer screen). As stated in the introduction, one of the exciting things about D3 for cartographers is its support for an extensive and growing library of map projections. The list of projections currently supported by D3, either natively or through the extended projections plug-in, is available at: github.com/mbostock/d3/wiki/Geo-Projections. Choose an equal-area projection, given the choropleth mapping context.

The following example applies the Albers Equal-Area Conic projection using d3.geo.albers(), centered on France (EX3: 13–19); this projection is native to d3.v3.js. The projection parameters following the function call apply mathematical transformations to the default Albers projection:

• .center recenters the map at a given [lon, lat] coordinate;
• .rotate rotates the globe counter-clockwise (from the North Pole) given angles of [lon, lat, roll] away from the geographic center;
• .parallels sets the standard parallels of the projection, given as [lat1, lat2];
• .scale is the scale of the map, set using an arbitrary scale factor; and
• .translate adjusts the pixel coordinates of the map’s center, and always should be set as half the width and height to keep the map’s center in the center of the SVG area.

Next, you need to project your geometry according to these projection parameters. D3 uses a “geo path” SVG element to render the geometry included in a GeoJSON object as SVG. The d3.geo.path() function creates a new path generator with a default projection of Albers, centered on the USA. This logic may run counter to previous experience with JavaScript; if D3 worked like Leaflet, you might expect that calling d3.geo.path() will return an object or an array. Instead, d3.geo.path() is a D3 generator function that creates a new function (the generator) based on the parameters you send it. You then can store this generator as a variable, and access the variable like you would call a function, passing it parameters to manipulate. Note that the d3.geo.path() function requires that you specify the previously created projection. Each time the path generator is used to create a new SVG element (i.e., a new graphical layer in the map), the SVG graphics will be drawn using the projection indicated in the d3.geo.path() generator function. Hopefully, the idea and usage of generator functions will become clearer as you proceed through the tutorial.

First, make use of the d3.geo.path() generator function to define a path generator that creates projected SVG paths from the geometry based on your map projection (EX3: 21–23). Then, make use of this path generator through the append() function to add an SVG element containing the geometry derived from your TopoJSON, projected according to the generator definition (EX3: 33–37); note that this code should be part of the callback function, replacing the console.log statement. The first line adds the element to the DOM and to the map selection and assigns the new selection to a variable countries (EX3: 34). The second line specifies the datum() that will be attached to the countries selection (EX3: 35). In D3 terms, a datum is a unified chunk of information that can be expressed in SVG form (as in the singular form of data, not a geometric model of Earth’s surface). D3’s .append() method returns the new element, so the countries selection will reference the appended element and its associated datum.

At this point, it is acceptable to treat the polygons in the EuropeCountries JavaScript object altogether, as this is the background context for the choropleth map and will not be interactive. This is why the append() function is used, rather than first calling the selectAll(), data(), and enter() functions (described below). The datum() function expects a JSON or GeoJSON; to use the newer TopoJSON format, access the topojson.feature() method from topojson.js, indicating the object (EuropeCountries) in the TopoJSON you want translated. The third line assigns the countries element the class name countries so that it can be styled in styles.css (EX3: 36). In the fourth line, the d attribute contains a string of information that describes the <path> (see: developer.mozilla.org/en-US/docs/SVG/Attribute/d) (EX3: 37). It is for this purpose that the path generator is so useful: it projects the EuropeCountries geometry and translates it into an SVG description string.

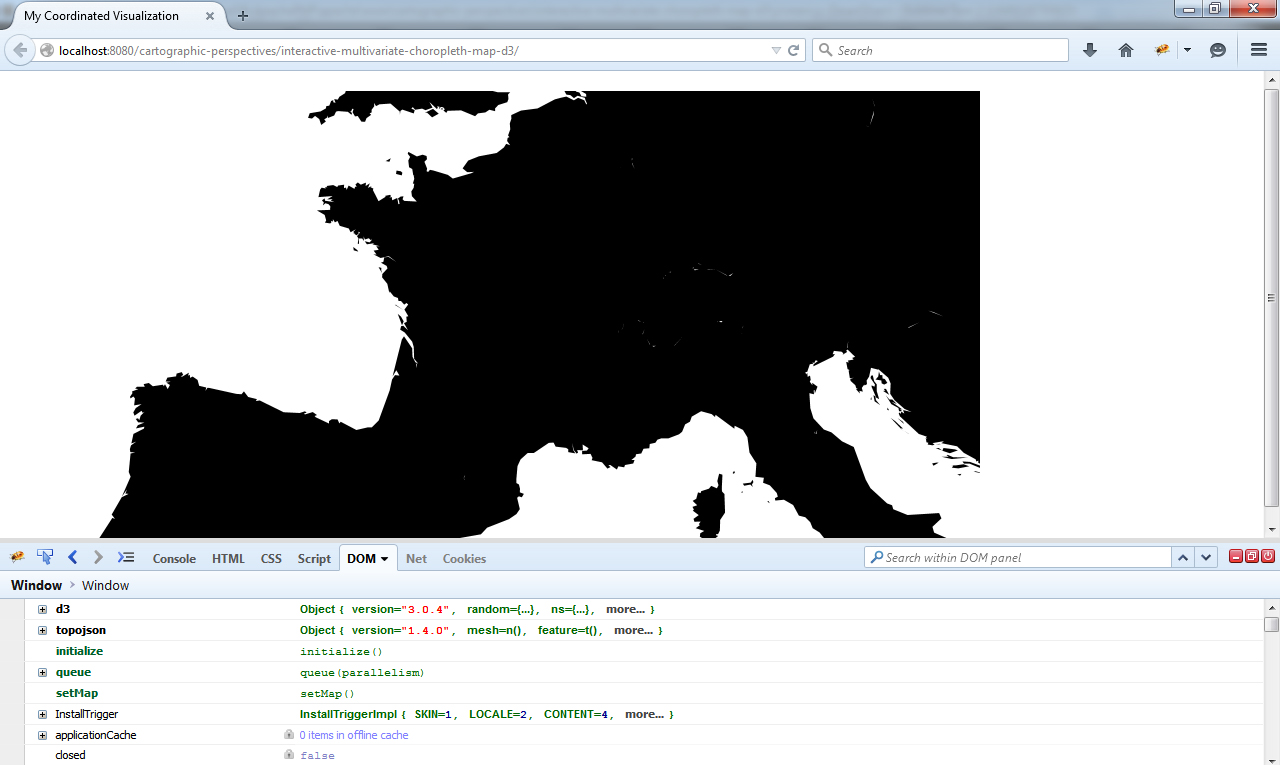

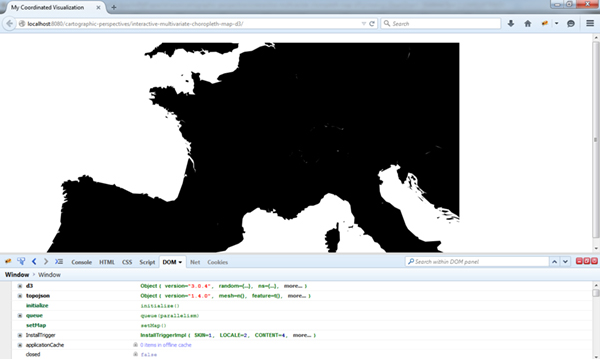

Figure 4. Drawing the basemap.

Altogether, the revisions in Example 3 result in four D3 blocks of chained methods connected by dot syntax to minimize the file size (8–11; 14–19; 22–23; 33–37). It is important that you do not place a semicolon between lines of a block, as this interrupts the block and results in a syntax error. To maximize clarity, the following instructions designate a variable for each block that creates at least one new element, with the same variable name as the class attribute designated for that element, even if that variable is not accessed again. Now refresh your browser and you should see a map (Figure 4).

5. STYLING YOUR BASEMAP

With the basemap geometry drawing in the browser, it is now time to style the basemap. Style rules can be applied to the SVG element containing the projected map using the countries class reference (EX3: 36). Return to style.css and add the basic style rules provided in Example 4. These styles add default gray outlines to the countries as a starting point; continue to improve the applied basemap styles as you progress through the tutorial.

A nice cartographic function supported by D3 is the ability to add graticule lines to any map (Example 5). Graticule methods are included in the D3 Geo Paths documentation (github.com/mbostock/d3/wiki/Geo-Paths), and an example is available at: bl.ocks.org/mbostock/3734308.

To add the graticule to your basemap, begin by creating a generator called graticule (EX5: 1–3). Where you place this code matters, as you are conceptually building your visual hierarchy from the bottom up in the map as you add new code from the top down in the setMap() function. The graticule generator should be placed after creating the path generator, but before loading and processing the TopoJSON files with queue(); this order will place the countries above the graticule.

Next, use the path generator to add two SVG elements named gratBackground (i.e., the water) and gratLines to the map. First, add gratBackground using the append() function and configure its attributes (EX5: 5–9). Then, add gratLines to the map using selectAll(), data(), and enter() and configure its attributes (EX5: 11–17). The sequence of these three methods is used to create multiple new elements at once, and thus to draw each desired graticule line individually. This is required by D3 for graticule lines, but also is useful when individual features are styled differently or are interactive.

Consider carefully the code provided in Example 5, particularly the final block. It might appear as though D3 warped the space-time continuum to select DOM elements before they were created. Really, D3 just “sets the stage” for them. The selectAll() function creates an empty selection, or a blank array into which will be placed one element for each graticule line (EX5: 12). The data() method operates like datum(), but creates undefined placeholders in the selection array for future elements associated with each datum (each value or object within the overall data array) (EX5: 13). The enter() function adds each datum to its placeholder in the selection array, changing the placeholders from undefined to objects, each of which has a __data__ property that holds the associated datum (EX5: 14). Every method placed below enter() will be executed once for each item in the array; you can think of this as a kind of “for” loop. The append() function adds a new element for each object in the selection, binding the datum to that element (EX5: 15). The first attr() call assigns each element a class for styling purposes (EX5: 16); note that you must assign this class, as the only function of selectAll(“.gratLines”) is to select elements that do not exist yet in the DOM. The second attr() call projects each datum through the path generator into the d attribute, just as gratBackground and countries are projected.

Finally, style the gratBackground and gratLines in style.css using the class names “gratBackground” and “gratLines” (Example 6); you are encouraged to tweak these styles as your design evolves. Refresh your index.html page in your browser to view your basemap (Figure 5).

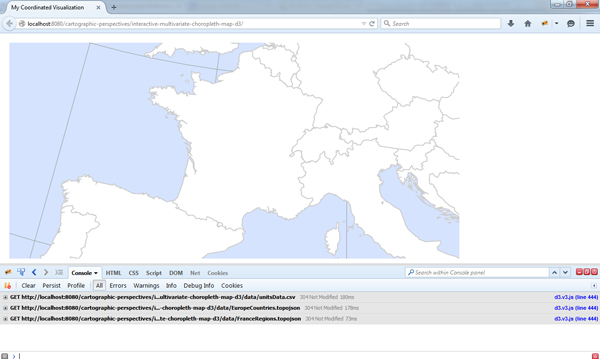

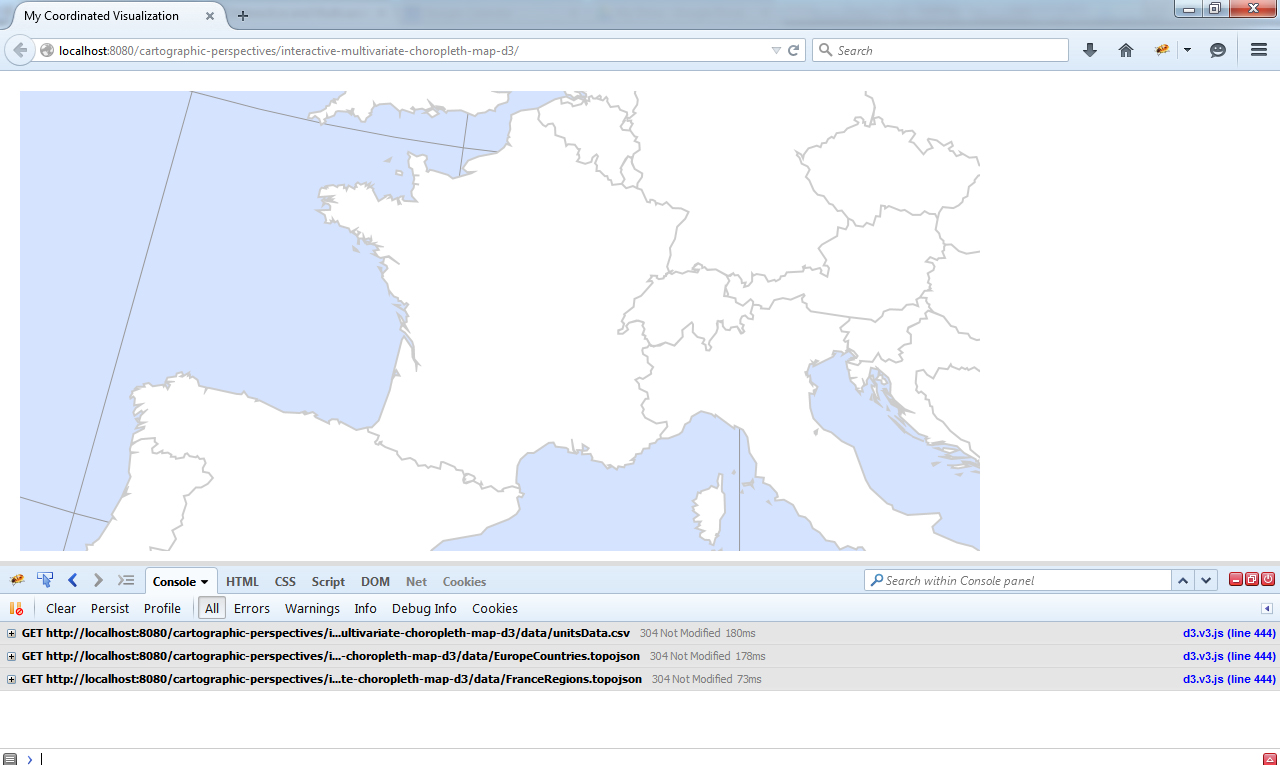

Figure 5. Styling the basemap.

6. DRAWING YOUR CHOROPLETH MAP

With the basemap context in place, you are ready to draw your choropleth map. Again, the choropleth map uses the geometry included in FranceRegions.shp and converted to the FranceRegions object in your second TopoJSON. The FranceRegions object could be added through the path generator using datum(), as with EuropeCountries above. Unlike the basemap, however, each region is unique in both representation and interaction. You need to add each region separately in order to set different properties and attach different event listeners to each individual region. Therefore, you need to use the selectAll(), data(), and enter() methods—much like you did to draw each graticule line—rather than the simpler append() and datum() methods—like you did for drawing the basemap countries and graticule background (Example 7). A new selection named regions is created using the selectAll() method and each region is added to the map by the path generator (EX7: 10–17). It is important to note that Example 7 must be added within the callback function, as the TopoJSON must first be processed before adding the regions element.

Reload your index.html file in your browser; you now should see your enumeration units plotted atop the basemap and graticule with a default black fill (Figure 6).

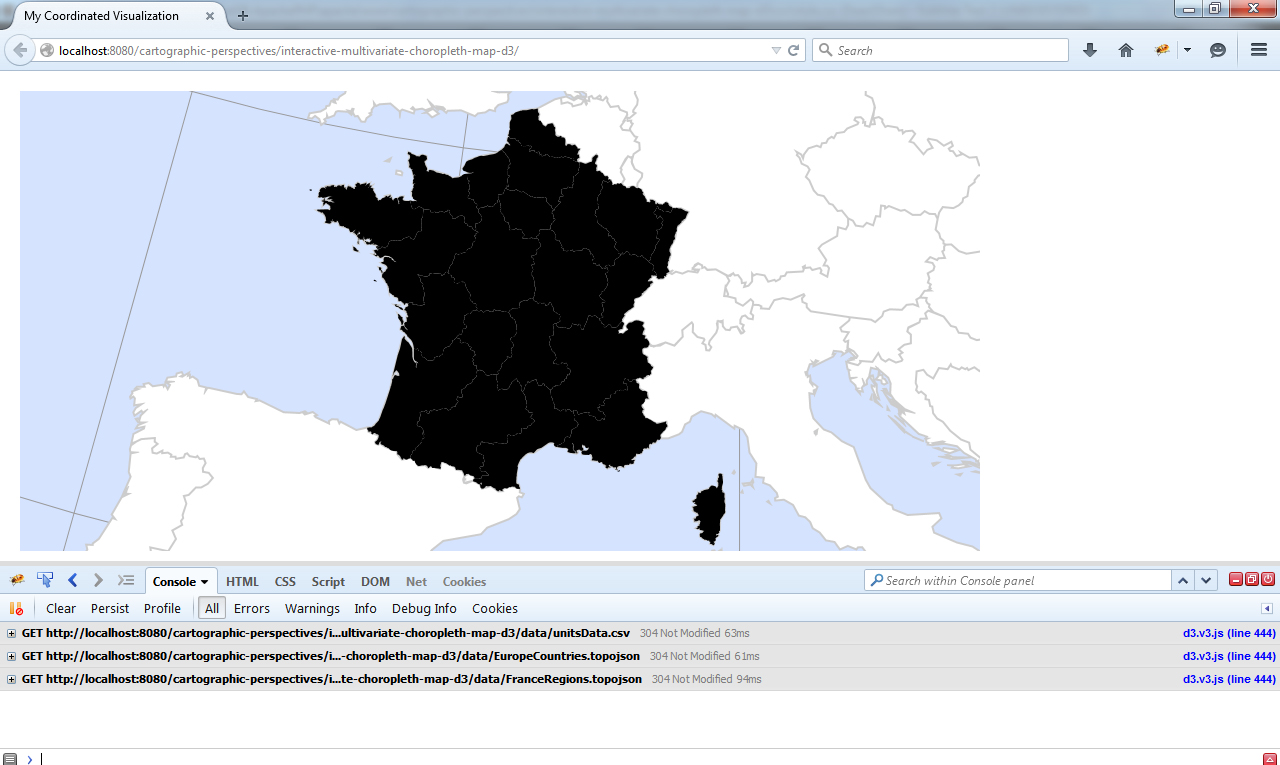

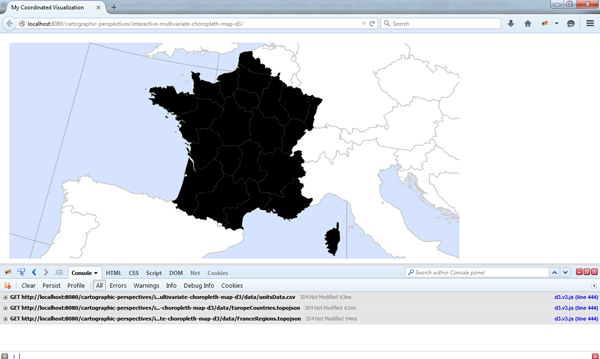

Figure 6. Drawing the enumeration units.

7. RELATING YOUR .CSV AND .TOPOJSON INFORMATION

You now are ready to load the .csv file containing your multivariate information so that you can color the enumeration units according to their unique attribute values. Example 8 makes use of a file named unitsData.csv. Again note that this file includes a column with the adm1_code header for each region (Figure 1), which can be used to join each region’s multivariate information in the .csv file to its geographic information in the .topojson.

Example 8 includes part of Example 2, which shows the use of the d3.csv function with queue() to load and parse unitsData.csv. The d3.csv function parses each row into an object using the column headings as keys, while queue().await(callback) passes the object to the callback function (EX8: 4). In order to attach the multivariate information from the unitsData.csv to the geographic information in FranceRegions.topojson, both sets of data must be accessed from inside the callback function, which must in turn be fully contained in setMap() to make use of the generator functions previously created.

In Example 8, a set of nested loops is used to attach the multivariate information contained in csvData to the FranceRegions topojson object as properties of each topojson geometry (feature). First, an array is created containing the attribute names for the attributes to be transferred, and the desired topojson geometries array is assigned to a variable for neatness (EX8: 9–10). An outer loop then loops through each of the region objects in the csvData array, assigning each object to the variable csvRegion and assigning the region’s adm1_code to the variable csvAdm1 (EX8: 12–15). An inner loop then cycles through each topojson geometry object, testing whether that object’s adm1_code matches the adm1_code from the csvData region (EX8: 17–21). If the region codes match, a final loop runs through each key in the keyArray and assigns the corresponding key/value pair from the csvData region object to the properties object of the topojson geometry (EX8: 23–28). Also within the if statement, the topojson region is assigned the name of the csvRegion (EX8: 30). Once the right match has been found and attribute values transferred, the jsonRegions loop can be broken to save on processing time (EX8: 31). If this loop structure remains unclear, it is recommended that you add console.log statements line-by-line to inspect how the .csv and .topojson contents are being manipulated and combined through the nested for loops.

8. STYLING YOUR CHOROPLETH MAP

Now that the multivariate information in the unitsData.csv file is attached to the FranceRegions topojson object, you can color each region according to its unique attribute value. The example csvData.csv file contains five variables using the column headers “varA” through “varE” (Figure 1). Before implementing the choropleth styling solution, you first need to implement a method for determining which of the five variables should be represented in the choropleth map.

First, move the keyArray created within the callback in Example 8 to the top of main.js to make it a global variable (EX9: 2). Since the keys contained by keyArray are hard-coded strings, they do not actually need to be inside of the callback. Be sure to move this variable from within the setMap() function to the top of the main.js document, rather than duplicating it in both places in your code. Declare a second global variable, expressed, which indicates which of the keys in the keyArray is currently in use for coloring the choropleth map. Set the default index to 0, or the first attribute in the .csv file. This index value can be changed later on to sequence through the different attributes.

Next, you need to add two new functions providing the logic for styling the choropleth map (Example 10): colorScale() and choropleth(). These functions are external to the setMap() function. The colorScale() function (EX10: 1–23) provides the logic for setting the class breaks using a quantile classification, which divides a variable into a discrete number of classes with each class containing approximately the same number of items. Quantile classification is supported natively by D3 through the d3.scale.quantile() generator function. Importantly, the colorScale() function takes the csvData object from the callback function as a parameter (EX10: 1), demonstrating the value of the AJAX solution. Because of this, the call to colorScale() must be added within the callback function, but before the regions block where the resulting scale will be used (EX11: 2). The colorScale() function first creates a d3.scale.quantile() generator named color and indicates the color scheme for the choropleth using the range() method, which specifies the scale’s output (EX10: 3–11); a five-class, purple color scheme from ColorBrewer (colorbrewer.org) is used here. The d3.scale.quantile() method also requires an array of input values, specified using the domain() method. To determine the quantile class breaks properly, the domain array must include all of the attribute values for the currently expressed attribute (note: an equal-interval classification can be created by instead passing a two-value array to domain() with just the minimum and maximum values of the expressed attribute). A loop through the csvData is used to push the expressed attribute value for each enumeration unit into a single array, which is then passed to the domain() method (EX10: 13–20). The color generator is returned to setMap()and stored locally in recolorMap (EX10: 19–EX11: 2).

The choropleth() function then colors the enumeration units according to this quantile classification. The choropleth() function is called on the style() method in the regions block, within the callback function in setMap() (EX11: 13–15). The choropleth function takes two parameters: (1) a datum from the FranceRegions object associated with a given region (passed through the selection) and (2) the color generator, stored locally in the recolorMap variable. (EX11: 14). The choropleth function identifies the attribute value of the region under investigation (EX10: 25) and then checks if a value is valid (EX10: 27). If the value exists, the class color associated with that value’s quantile is returned (EX10: 28); if it does not, a default grey is returned (EX10: 30).

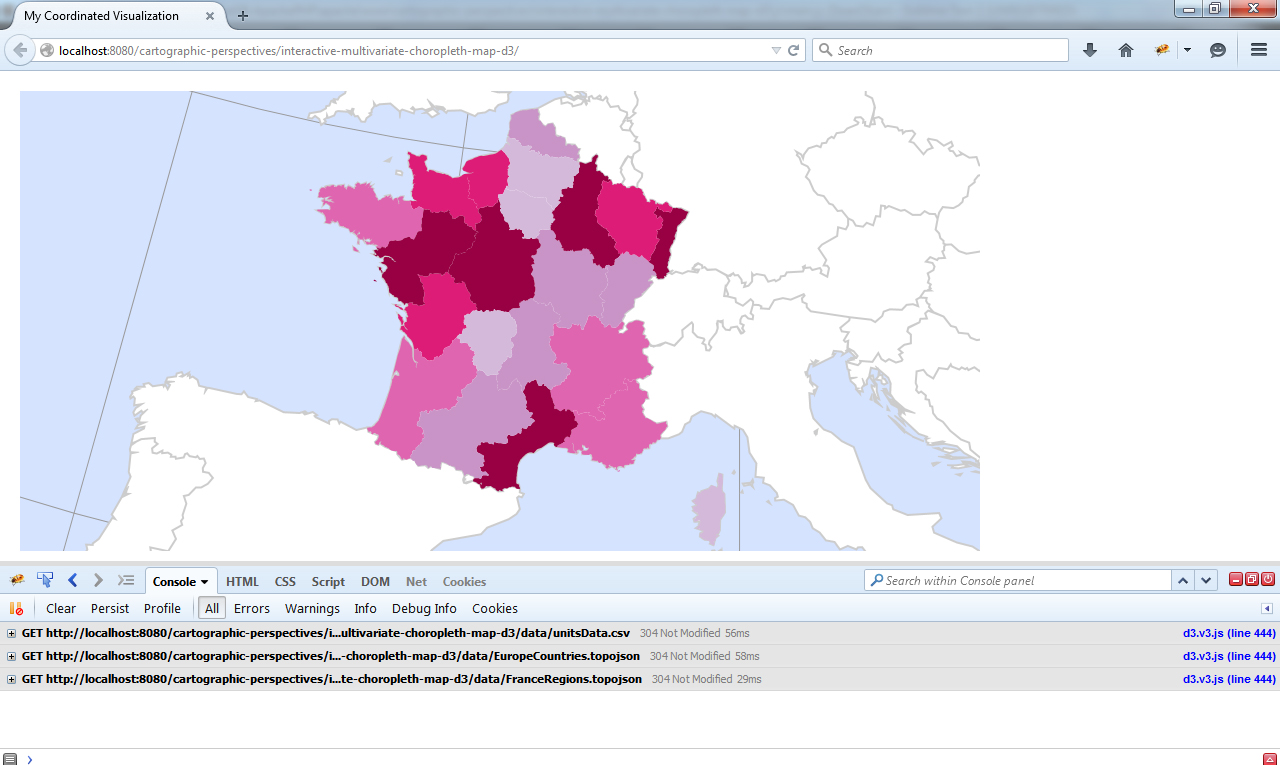

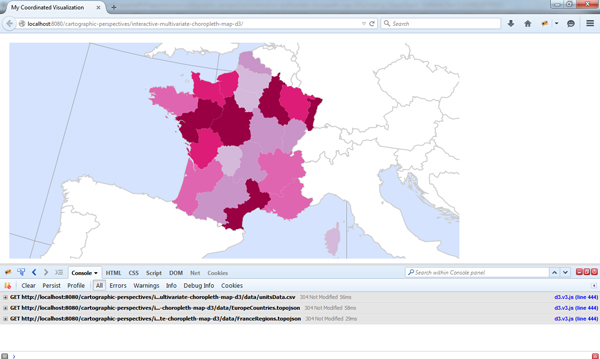

Figure 7. Styling the choropleth map.

Refresh index.html in your browser. Bingo! You now have a choropleth map (Figure 7).

9. IMPLEMENTING DYNAMIC ATTRIBUTE SELECTION

With the map drawing properly, you are now ready to make it interactive. Interactivity changes a computer-generated map from static to dynamic, increasing both its utility and its aesthetic attraction for the user. D3 allows for an indefinite variety of map interactions, although implementing interaction behavior is not automatic and requires some creativity on the part of the developer. This tutorial will cover two dynamic interactions: user selection of the represented attribute in this section, and highlighting of individual enumeration units with retrieval of details about the enumeration unit using a dynamic label.

Dynamic attribute selection requires an input control allowing users to choose the attribute they would like to see represented in the choropleth map. A simple and appropriate HTML input tool is the <select> element, which provides a dropdown menu with a list of options. As described above, creating new HTML elements using D3 involves the .append() method. At the end of the callback, add a call to a new function called createDropdown() and pass it the csvData object as a parameter; define this function below the setMap() function.

The first block (EX12: 2–7) selects the HTML element and appends a new <div> element, giving it the class dropdown so that its position can be adjusted in style.css. The .html() method is used to simplify the creation of an <h3> element and its content (the title of the menu) within the dropdown <div>. The final line of the block appends a new <select> element (the menu itself). The second block (EX12: 9–20) then uses .selectAll() to recursively create each menu item, feeding in the keyArray so that each string in the array (e.g., “varA”) is used as a datum for a selection. For each selection, an <option> element is appended to the parent <select> element, and the selection’s datum is assigned as the value of the <option> element’s value attribute. The text content of the <option> element is assigned using the .text() method, which contains a function that uses JavaScript string methods to manipulate the datum for plain English display to the user (EX12: 15–20). In style.css, a .dropdown selector should be added with a margin-left property to adjust the position of the dropdown menu div on the page.

In order to enable the attribute selection dropdown, an event listener must be added that will update the choropleth map when the user changes the selected attribute. D3 uses .on() as the primary method for adding event listeners. This method specifies the type of event and a function that will execute when the event is fired. HTML <select> elements use the “change” event to determine when a user has selected a new menu item. Use the .on() function to add a “change” event listener and trigger the changeAttribute() function when this event is fired (EX13: 8–10). The changeAttribute() function contains the code that restyles the map according to the selected attribute (EX13: 14–23). First, the expressed variable is reassigned with the attribute option selected by the user (EX13: 16). Then, the path elements of all of the existing regions on the map are selected and restyled by the choropleth() function using a new color generator. Recall that the colorScale() function sets the scale range using the .csv data values of the expressed attribute, as shown in Example 10.

10. IMPLEMENTING HIGHLIGHTING AND DYNAMIC LABELS

There are two steps left for completing the interactive choropleth map: (1) providing visual feedback when probing an enumeration unit (i.e., highlighting) and (2) activating a tooltip (i.e., a dynamic label) supporting the retrieval of details about the probed enumeration unit. You will create three functions to make these work: (1) highlight(), which restyles the probed enumeration unit and populates the content for the dynamic label on mouseover (EX14: 11), (2) dehighlight(), which reverts the enumeration unit back to its original color and deactivates the dynamic label on mouseout (EX14: 12), and (3) moveLabel(), which updates the position of the dynamic label according to changes in the x/y coordinates of the mouse on mousemove (EX14: 13). The event listeners should be added at the end of the regions block in setMap() (EX11: 6–15) to make each enumeration unit in the choropleth interactive, making sure you update the position of the semicolon that ends the block.

When implementing highlighting across features that are styled differently (as with the varying color scheme in a choropleth map), it is necessary to store the original color of the highlighted feature for when the feature is subsequently “dehighlighted”. This approach is faster than reprocessing the JSON object. The solution in Example 14 appends the original color as a text string in a SVG element (EX14: 14–17). The contents of the element then can be referenced to extract this color when reverting the enumeration unit to its original choropleth styling upon dehighlight(). Note that for highlighting to work properly for all attributes, the element should be selected and reset at the end of the block in the changeAttribute() function, as shown in Example 15.

Once adding the event listeners to the regions block of setMap(), you then must define the event handler functions. First, add a new function named highlight(), which should be defined outside of setMap() (EX16: 1–19). The highlight() function receives the data object associated with highlighted enumeration unit a s the parameter. The data object’s properties are stored in a local variable named props (EX16: 3). The highlight() function then calls d3.select() to find the SVG path for the region, using the adm1_code, and changes its fill style to black (EX16: 5–6). There are many other possible highlighting solutions; this one was chosen for simplicity.

The highlight() function then designates two HTML strings used in the dynamic label, one with the attribute data (labelAttribute) and one with the region name (labelName) (EX16: 8–9). Note how the labelAttribute variable makes use of the global expressed variable to determine the attribute to include in the label. As above, you are encouraged to adjust the content of the dynamic label based on the purpose of your map. Finally, the highlight() function creates a new <div> element named infolabel to hold the dynamic label (EX16: 11–19). A child <div> named labelname is added to infolabel to position the region name within the label.

Add style rules to the dynamic label in style.css, using the infolabel and labelname class identifiers. Example 17 provides basic style rules to create a 200×50px dynamic label with white text and a black background. Note that the <h1> and <b> tags are styled for the infolabel text (EX17: 17–26), as these are used in the labelAttribute HTML string (EX16: 8); you are not limited to these tags in the design of your dynamic label.

Reload your index.html page in your browser and inspect your work. At this point, mousing over an individual enumeration unit should result in highlighting the unit and retrieving the associated attribute value in a label (Figure 8a). The dehighlight() function must be implemented to revert the enumeration unit to its original color and deactivate the dynamic label (EX16: 21–30). First, the properties of the data object for the selected enumeration unit are stored in the props variable (EX16: 24). Then the enumeration unit itself is selected and the text within its element is retrieved and assigned to the variable fillcolor (EX16: 21–30). The selected region is assigned this color as its fill (EX16: 27). Finally, the dynamic label is selected using its id and removed (EX16: 29).

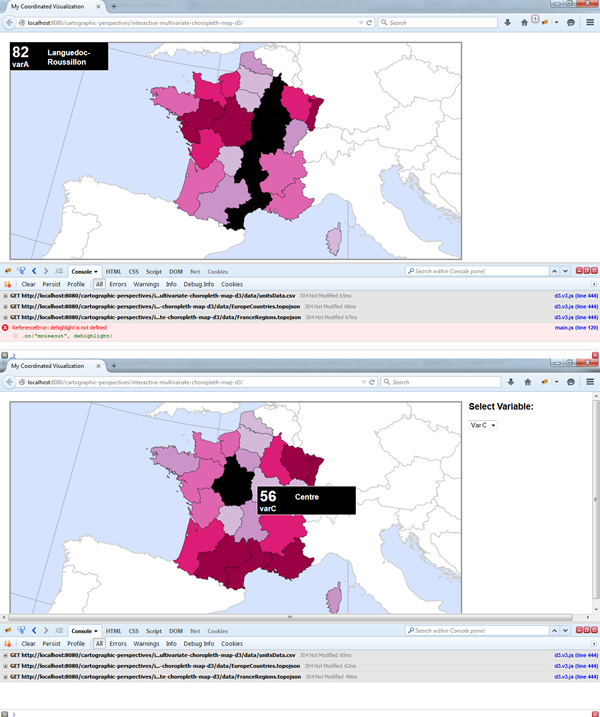

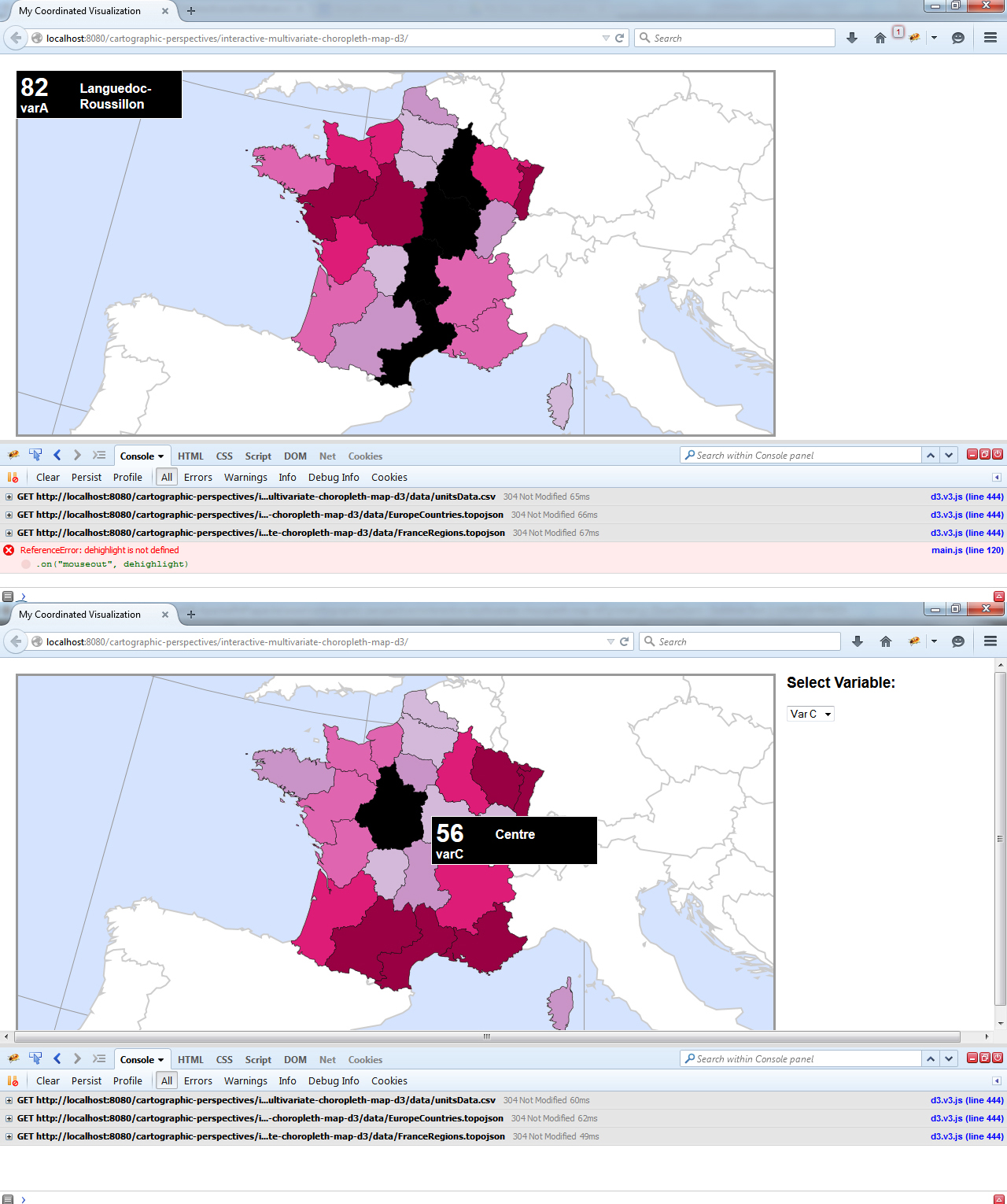

Figures 8a (above) and 8b (below). Implementing highlighting and tooltips in the choropleth map.

Although the enumeration units should now correctly highlight and dehighlight, the dynamic label is positioned away from the map itself rather than near the highlighted region. To make the dynamic label follow the user’s mouse cursor, first change the positioning of the svg map container to absolute in style.css (EX17: 1–3); this should be defined early in the stylesheet so it may be overridden by individual class rules. Then, define the moveLabel() function in main.js that is called on mousemove atop an enumeration unit (Example 18). The moveLabel() function uses the d3.event() method to access the current mouse event (mousemove), which includes mouse coordinate properties (clientX and clientY). The function simply accesses the mouse coordinates of the event and uses them to offset the label in relation to the body element, the lowest DOM element that is relatively positioned. If you changed the size of the dynamic label in style.css, you need to adjust the horizontal and vertical label coordinates according to the revised width and height (EX18: 3–4).Reload the index.html page; you now should be able to mouse over each enumeration unit, resulting in highlighting of the enumeration unit and activation of a dynamic label that follows the mouse (Figure 8b).

DOING MORE WITH D3

At this point, you should be comfortable with the essential workings of D3’s mapping functionality. This tutorial has covered finding and formatting data, converting geographic data into GeoJSON and TopoJSON formats, asynchronously loading data into the browser, using D3 Projections and a D3 Geo Path generator to draw a graticule and basemap, styling the basemap based on one of multiple attributes, creating a dropdown menu to allow the user to select between attributes, and implementing some interactions for retrieving information from the choropleth map.

Much more can be done with the example data provided than has been covered here. D3 provides many different types of visualizations that allow for dynamic data journalism (for examples: github.com/mbostock/d3/wiki/Gallery). These may be used independently or have their interactions linked through the magic of JavaScript. The authors hope that this toehold into the world of D3 lowers the bar for readers seeking to experiment with new web-mapping technologies, and that you will contribute to the growing canon of interactive multivariate web maps that follow sound cartographic principles.
