DOI: 10.14714/CP88.1391

Accessible Web Maps for Visually Impaired Users: Recommendations and Example Solutions

Sabine Hennig, Paris Lodron University of Salzburg | sabine.hennig@sbg.ac.at

Fritz Zobl, Paris Lodron University of Salzburg | fritz.zobl@sbg.ac.at

Wolfgang W. Wasserburger, AccessibleMap Association/Technische Universität Wien | wolfgang@wasserburger.at

INTRODUCTION AND RESEARCH QUESTIONS

Foote and Crum (1995) suggest that maps are perhaps as fundamental to society as language and the written word. They help people to orient themselves in physical space, to navigate from place to place, to plan routes, to acquire spatial knowledge, and to build up cognitive or mental maps (Helal et al. 2001; Montello and Freundschuh 2005). For persons who are blind, or who are severely visually impaired, maps are even more important. Without a visual sense, they can easily lose their orientation, particularly when traveling in unknown environments (Clark-Carter et al. 1986; Helal et al. 2001). Maps enable them to construct a cognitive map of as yet unknown areas, which they can later recall from memory while on-site, supporting them in independently finding their way (Brock et al. 2013; Golledge et al. 1996).

Web maps, like many other technologies, have the potential to enhance the quality of life and independence of disabled people (Harris 2010; WHO 2007). Nevertheless, technology does not automatically bring them benefits merely by existing (Macdonald and Clayton 2013): solutions must be implemented with an understanding of a user group’s requirements. However, while web maps have the potential to benefit those who are visually impaired, current examples rarely meet the requirements of this user group. Depending on the type and degree of a user’s visual impairment, web maps can be quite challenging; in the case of people who are severely visually impaired or blind, their use is often hardly possible at all (Call-Jimenz and Lujan-Mora 2016; Höckner et al. 2012; Zeng and Weber 2011). Barriers that generally hinder these users from using web maps have been discussed by other authors (see, for example, Calle-Jimenez and Lujan-Mora 2016; Höckner et al. 2012): they may be too complex to use, feature inappropriate graphical design of the user interface and/or the map, suffer from a lack of appropriate interaction modes, or lack a verbal description of the map content.

To support the creation of web maps that are accessible to visually impaired users, several open questions need to be answered: What guidelines exist to support their development? Which applications already exist that can serve as examples to guide the design and implementation of accessible web maps? What recommendations can be offered to support the development of web maps accessible to visually impaired users? Which additional approaches, beyond a consideration of accessibility, can support the creation and use of such web maps? The findings we discuss in this paper are based on knowledge gained from two projects: AccessibleMap and senTour.

BACKGROUND

TARGET GROUP

The term “visual impairment” covers a wide range of different types of eye disorders and degrees of vision loss. As described by the International Council of Ophthalmology (2002), this encompasses minimal impairments; mild, moderate, severe, and profound vision loss; near-blindness and blindness; as well as color vision loss (Table 1). According to the World Health Organization (2013), in 2011 the number of people with reduced vision and blindness amounted to approximately 285 million worldwide, with 246 million suffering from low vision and 39 million affected by blindness. The reasons for visual impairment are manifold: examples include uncorrected refractive errors, cataracts, glaucoma, diabetic retinopathy, trachoma, corneal opacities, and age-related macular degeneration (Pascolini and Mariotti 2012).

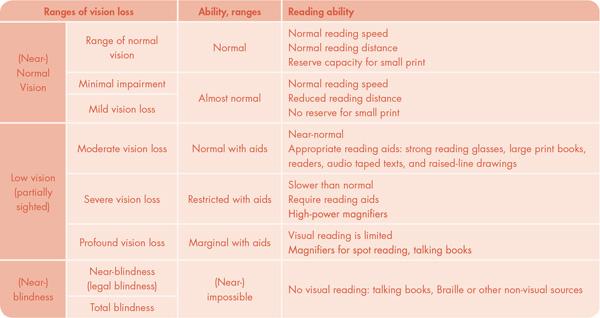

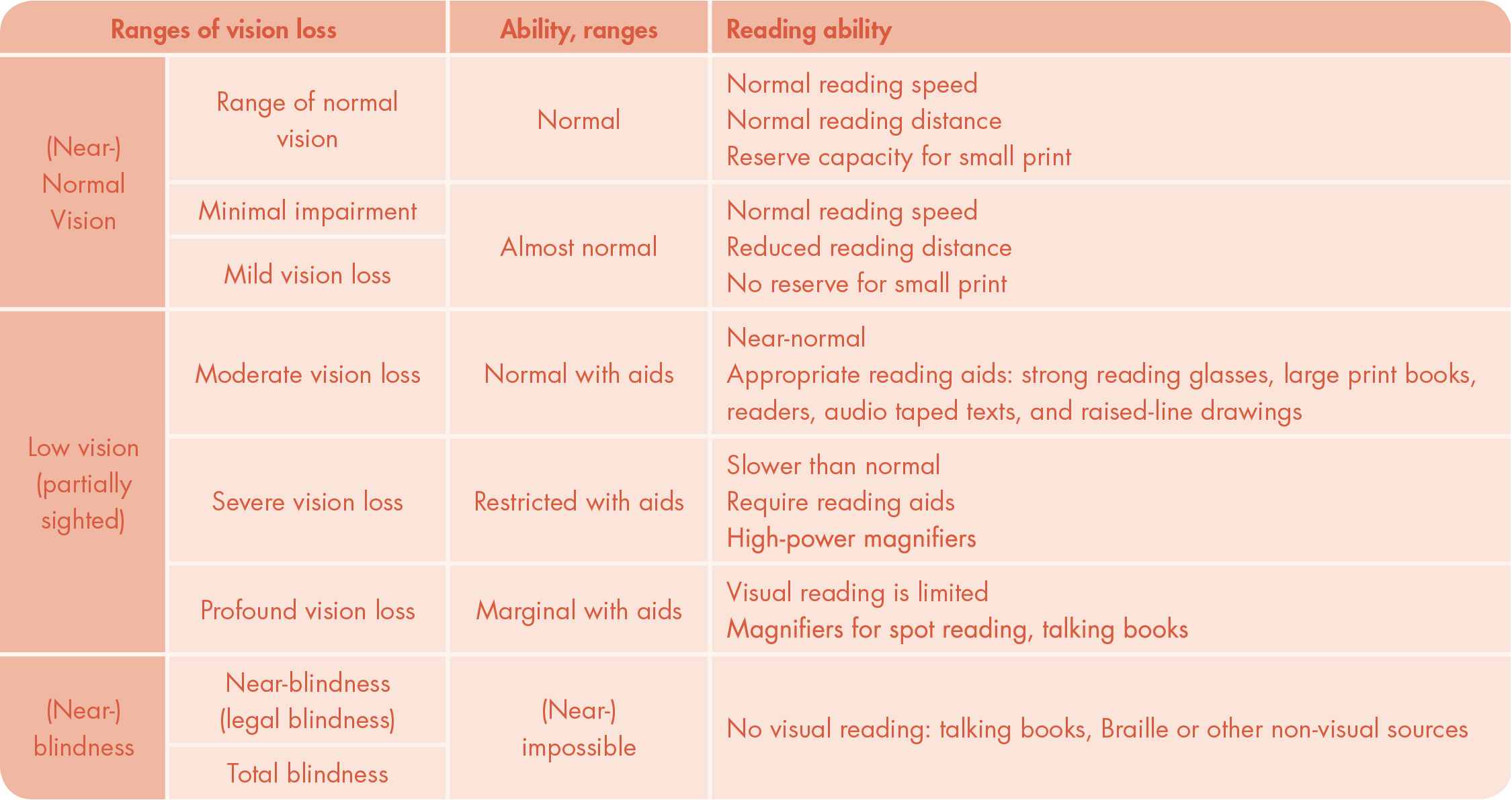

Table 1. Types and degrees of visual impairment (CUDE 2015; ICO 2002; WHO 2013).

Due to increasing life expectancies, the number of older persons is on the rise in many parts of the world. The over-65 population proportion is expected to more than double globally over the next forty years, climbing from 7% to 16% (to nearly 1.5 billion people). As the older population increases, so will the number of people affected by visual impairment—age is a significant factor in the decline of visual capacity. This is emphasized by the following numbers: while approximately 20% of the world’s population is age 50 and older, about 65% of all visually impaired people worldwide belong to this age group (Pascolini and Mariotti 2012; WHO 2013).

Another significant population that must be considered is persons with color vision impairments. This term refers to an inability to distinguish certain color shades, or, in more severe cases, to see colors at all (AOA 2014). While many different forms of color vision impairment exist, the most common are: (1) protanopia (reduced sensitivity to red light), (2) deuteranopia (reduced sensitivity to green light), and (3) tritanoptia (blue-yellow color blindness). This trait is mainly carried by a sex-linked genetic disorder (though it can also be caused by injury, disease, or medication side effects); approximately 8% of the total male population and 1% of the total female population suffer from color vision deficiency (AOA 2014; Culp 2012; Olson and Brewer 1997). Since mapmakers often use colors to represent different categories of map features and to facilitate visual grouping, users suffering color visual impairment can find reading maps challenging—especially if maps are produced with little or no consideration for them (Olson and Brewer 1997).

RELATED WORK

Accessibility-oriented products aim to improve the extent to which everyone in a society is able to live independently and self-determinedly, and to participate fully in all aspects of life (ITU/G3ict 2014b). This is done through a focus on ensuring an equivalent user experience for people with disabilities (W3C 2010). As the internet becomes more and more a part of daily life for many people, numerous initiatives on web accessibility have emerged in recent years. Their focus is on the removal of technical barriers that hamper access to information, with the aim that all people can perceive, understand, and operate every control, instruction, or output related to a website (ITU/G3ict 2014b; W3C 2005; W3C 2012).

Like other accessible products, maps tailored to the needs of visually impaired people are not new. High contrast maps, large font maps, tactile maps, and Braille maps are well-established analog products. Technological advances—especially since the mid-1990s—have also facilitated the development of a variety of digital maps supporting visually impaired users. Examples include

• virtual acoustic maps representing information about features such as lakes, parks, and streets as verbal and non-verbal audio output (Heuten et al. 2007; Zhao et al. 2005);
• virtual tactile maps, in which tactile displays and other haptic devices (such as a joystick or haptic mouse) are used to explore maps (Moustakas et al. 2007; Parente and Bishop 2003);
• tactile-audio maps, in which users explore maps with their fingers using touch-sensitive pads and obtain more detailed information from auditory representations (Wang et al. 2009); and
• Braille tactile maps, which use tactile and touch-enabled Braille displays to present map information (e.g., points of interest) as well as interaction functions (pan, zoom, search, etc.) through raised pins (Zeng and Weber 2010).

As they have become more popular in recent years (and featured greater capabilities), a number of researchers have also worked to develop interactive web maps tailored to visually impaired users (see, for example, Brock and Jouffrais 2015; Helal et al. 2001; Poppinga et al. 2011; Rener 2017; Sánchez and Torre 2010; Siekierska and McCurdy 2008).

PROJECTS AND METHODS

The recommendations we present in this paper rely on work conducted in two projects: AccessibleMap and senTour. Both projects aimed at implementing a web map suitable for the disabled, and especially for people who are visually impaired (Table 2).

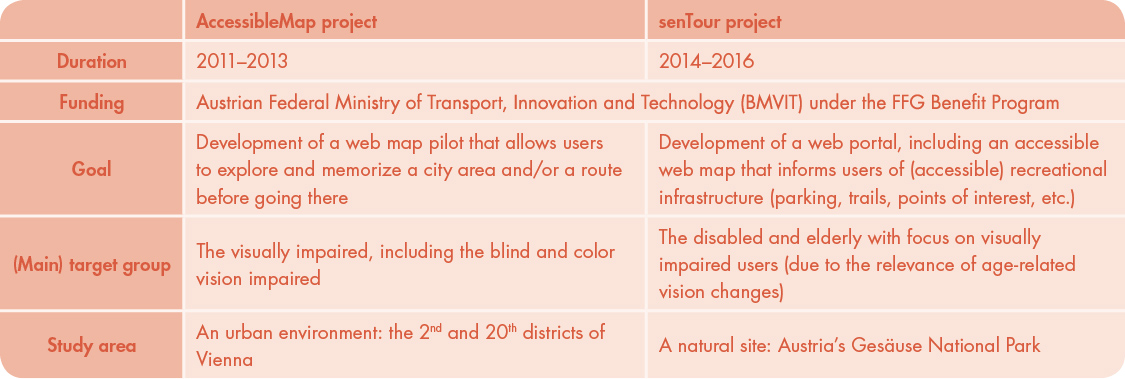

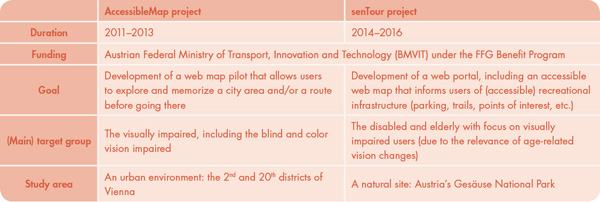

Table 2. Overview of the AccessibleMap and senTour projects.

A good understanding of the user groups and their needs played a key role in both projects, and thus was a focus of much of our effort. The workflow and methods used to gain this knowledge about visually impaired users were quite similar for each project (Figure 1), and included literature reviews, questionnaires, internet research, and analysis of similar systems (AoSS). Throughout the entire development process we also cooperated closely with stakeholders (i.e., organizations that represent the interests of the target group). The results of these efforts were then combined and allowed us to develop design recommendations. Additionally, the findings obtained in the AccessibleMap project provided background for the subsequent senTour project.

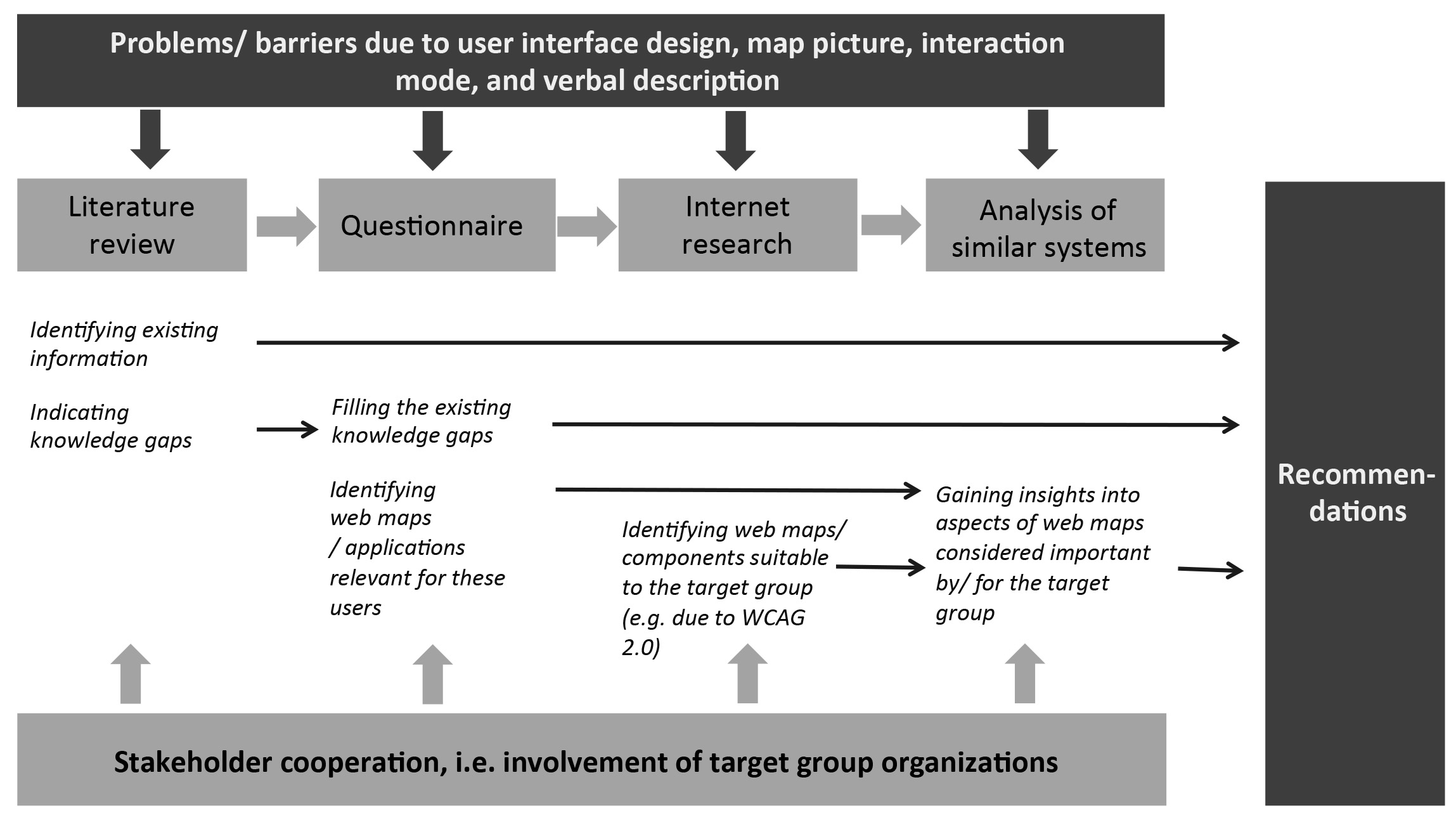

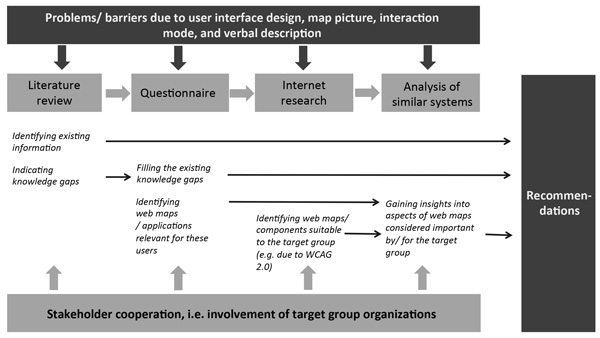

Figure 1. Workflow and methods used in the AccessibleMap and senTour projects to gain understanding of users and their needs and to develop design recommendations.

LITERATURE REVIEW

In the first step, existing information on what to consider when creating web maps for visually impaired users was collected through a literature review. Our focus was on literature regarding (web) accessibility, geoinformatics and cartography, software and web engineering, and behavioral geography.

QUESTIONNAIRES

In both projects questionnaires, prepared using the internet survey tool SurveyMonkey, were used to close knowledge gaps identified through the literature review. The AccessibleMap project questionnaire—addressing visually impaired and blind users—consisted of 55 open and closed questions (Table 3): 20 questions were directed towards all users, 16 towards profoundly visually impaired and blind users, and 19 towards users with low vision including color vision impairments. Several questions were asked in order to collect information about which existing city web maps the target group used and which aspects and features they liked and disliked about these applications. The questionnaire was distributed through face-to-face interviews and via email in the autumn and winter of 2011–12, in Austria, Germany, and Switzerland.

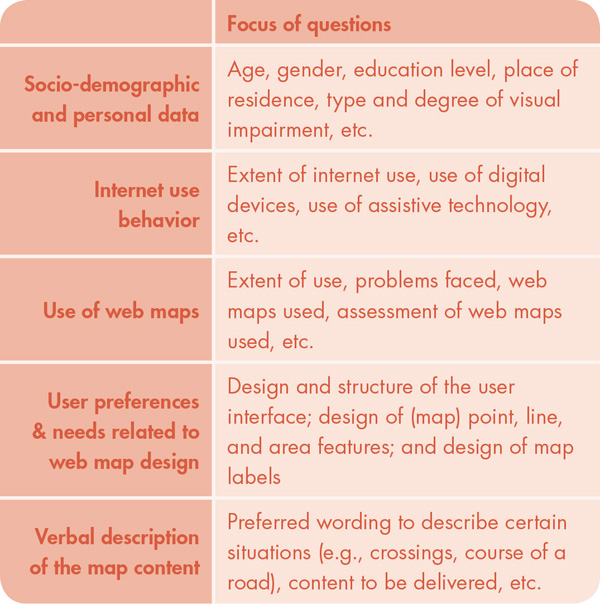

Table 3. Focus of the AccessibleMap questionnaire.

The senTour project used two questionnaires. The first was addressed to managers of large protected areas in Germany, Austria, and Switzerland in the autumn and winter of 2014–15. It encompassed 17 mostly open questions focusing on their experience with (digital/web-based) accessible products and which solutions they considered to be examples of best practices. The second questionnaire was directed towards the target user group. It contained 23 open and closed questions on socio-demographic data (e.g., place of residence, age, gender, educational level), the infrastructure used and desired by the target group, sources of information available for them to plan and conduct recreational visits to natural sites, and their preferences regarding the provision of information (amount, type, etc.). In the spring of 2015, the questionnaire was distributed through email; face-to-face interviews were also conducted.

INTERNET RESEARCH AND AOSS

We then conducted an analysis of similar systems (Nemeth 2004) based on the applications and elements mentioned by the questionnaire respondents as well as those identified through internet research. Attention was given to aspects such as user interface and map design, the content and functionalities implemented, and web accessibility principles such as those outlined in WCAG 2.0 (W3C 2008).

STAKEHOLDER INVOLVEMENT

Target group organizations (for AccessibleMap, the Austrian Association in Support of the Blind and Visually Impaired; for senTour, the Austrian National Council of Disabled Persons) were involved throughout the development process for both web maps. They supported tasks related to gaining a deeper understanding of the intended user groups, such as advising on suitable questionnaire design, getting in contact with the target groups, and specifying user requirements.

OVERVIEW OF SELECTED RESULTS

RELEVANT AND USEFUL LITERATURE

Even though there are presently only a few specific recommendations for creating web maps that meet the needs of the disabled (and in particular the visually impaired), there is abundant literature that can still be useful when developing such web maps.

Numerous standards and guidelines exist to enhance the accessibility of digital and web-based products. They provide information on interface design, human-computer interaction, and the use of input/output devices that is helpful for the development of accessible web maps. Examples include:

• WCAG 2.0 “Web Content Accessibility Guidelines”
• ISO/IEC TR 29138-1 “Information technology — Accessibility considerations for people with disabilities — Part 1: User needs summary
• ISO TS 16071 “Ergonomics of human-system interaction — Guidance on accessibility for human-computer interfaces”
• ISO 9241-171:2008 “Guidance on software accessibility”
• ISO/IEC 9241—20:2008 “Accessibility guidelines for information/ communication technology (ICT) equipment and services”
• IBM Developer Accessibility Guidelines

Useful information can also be found in usability guidelines and recommendations. In particular, the Nielsen Norman Group (nngroup.com) has developed documents focusing on the usability of digital and web solutions for the visually impaired and the blind (see, for example, Nielsen 1994; Nielsen 1996; Pernice and Nielson 2001).

Literature specific to special needs cartography, such as Höckner et al. (2012) and Ienaga et al. (2006), delivers recommendations on how to design maps that are suitable for the intended user audience, as well as discussing the map content they require (e.g., information in support of orientation and wayfinding). There is also a body of research related to maps for the color vision impaired (see, for example, Culp 2012; Harrower and Brewer 2003; Jenny and Kelso 2007; Olson and Brewer 1997).

Verbal descriptions of map content are necessary to support the blind in constructing cognitive/mental maps. For this, literature on behavioral geography is particularly useful: how the blind navigate and orient themselves in indoor and outdoor environments, on navigation systems, on spatial cognition and mental mapping (Ferguson and Hegarty 1994; Millonig and Schechtner 2005; Tversky 1993; Giudice et al. 2007; Sánchez and Torre 2010).

QUESTIONNAIRE RESULTS

After removing invalid responses (such as those from users who were not visually impaired), 158 of 199 AccessibleMap project user questionnaires remained. Of those, 63% of the respondents were people with low vision, while 37% were severely visually impaired or blind. Table 4 provides an overview of the respondents’ socio-demographic characteristics, and Figure 2 presents selected questionnaire results. Further, the respondents named and commented on several city web maps they used, including specific maps of Berlin, Hagen, Mainz, Bern, and Vienna, as well as Google Maps and OpenStreetMap.

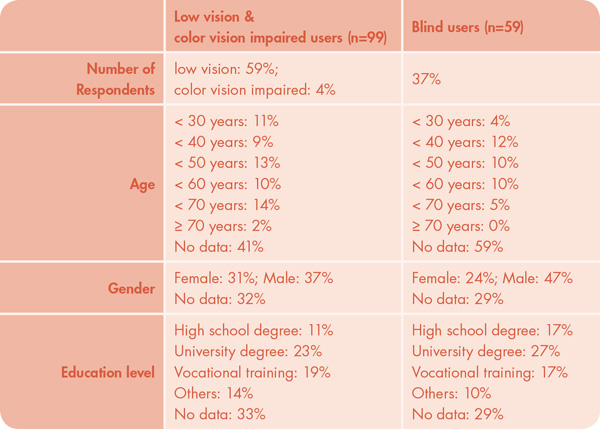

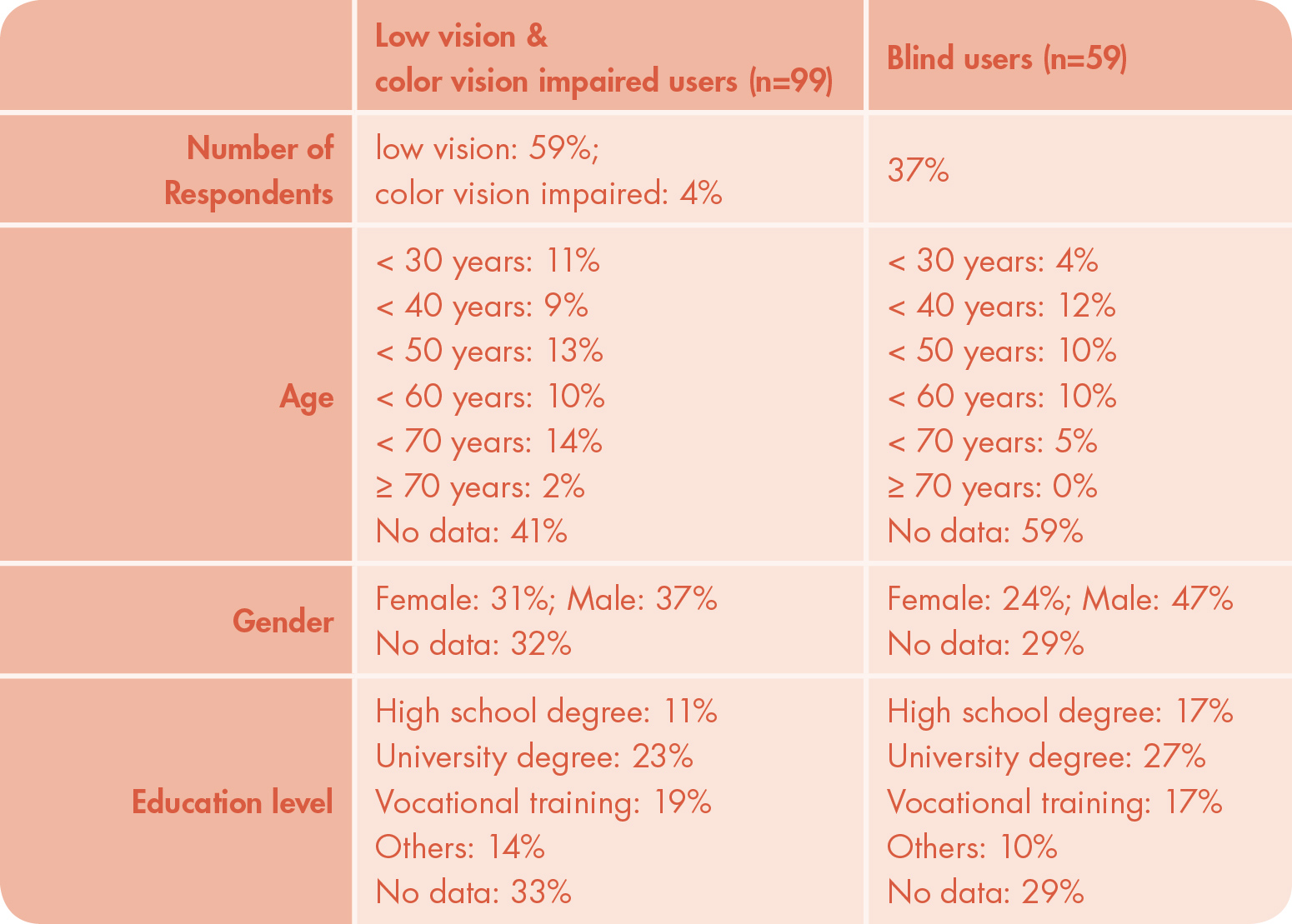

Table 4. Summary of respondents’ socio-demographic characteristics in the AccessibleMap project questionnaire.

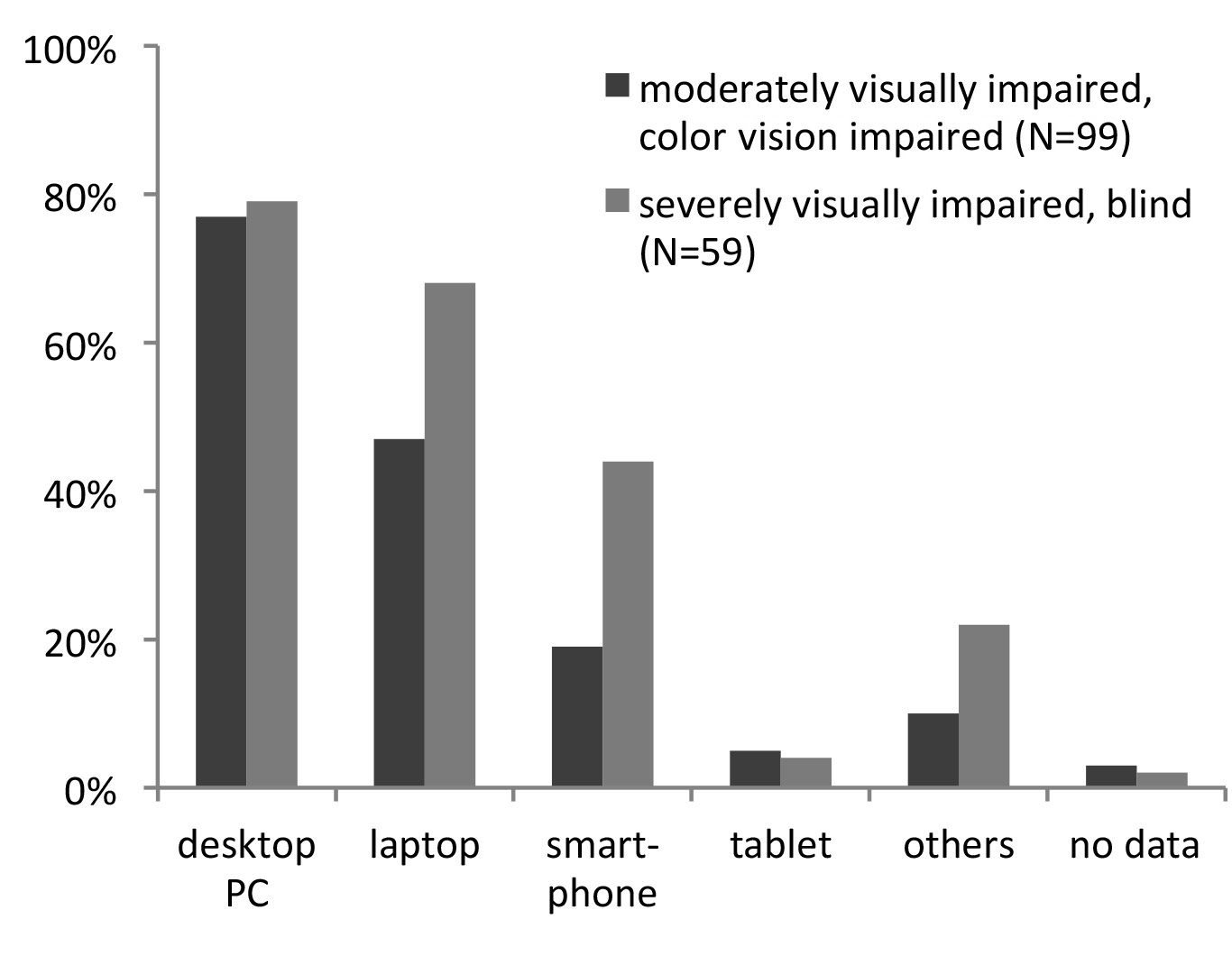

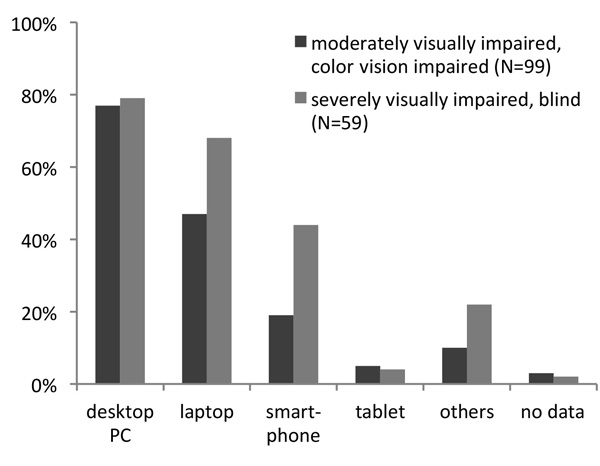

Use of devices by the visually impaired (multiple responses)

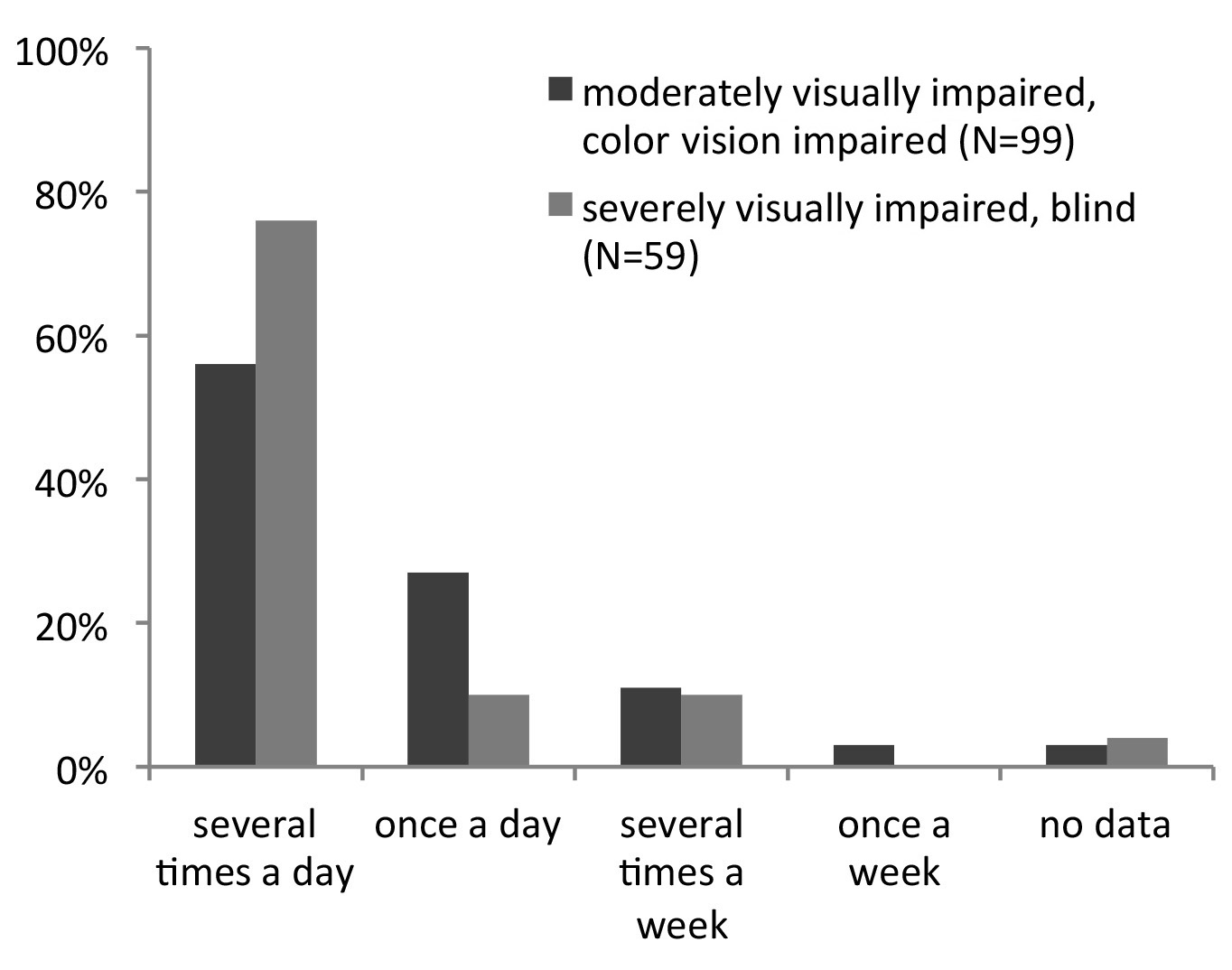

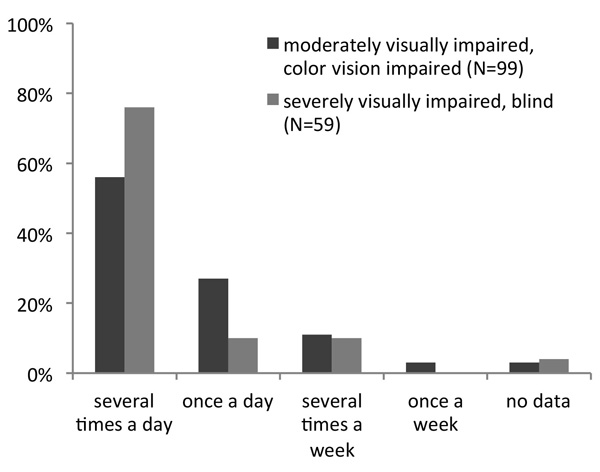

Use of the internet by the visually impaired

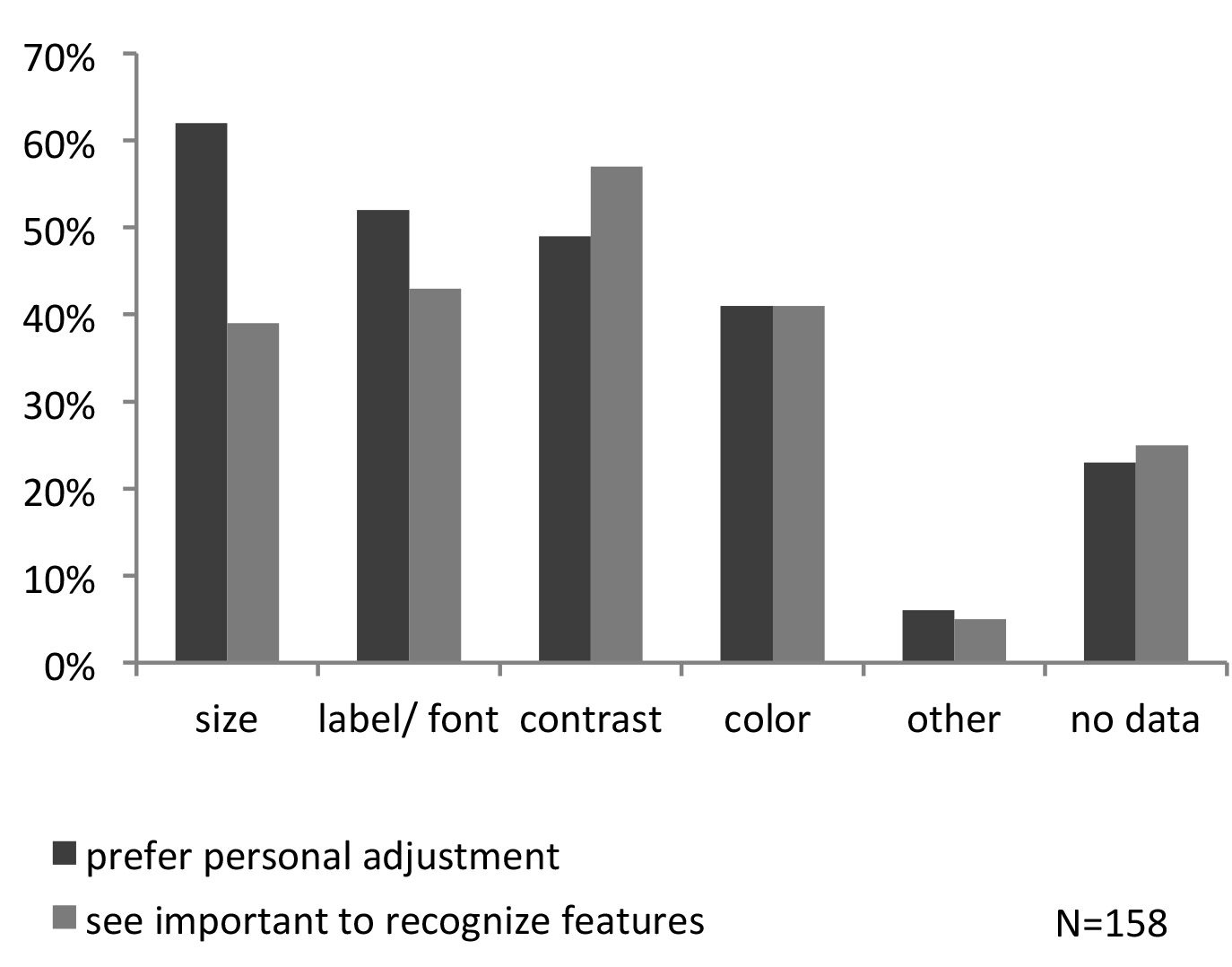

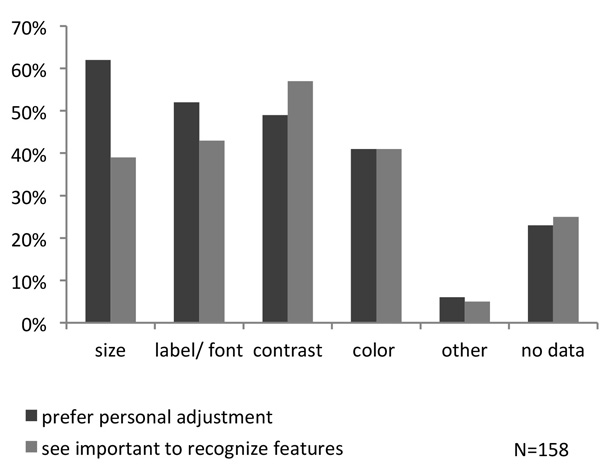

Relevance of visual variables in the map for the visually impaired (multiple responses)

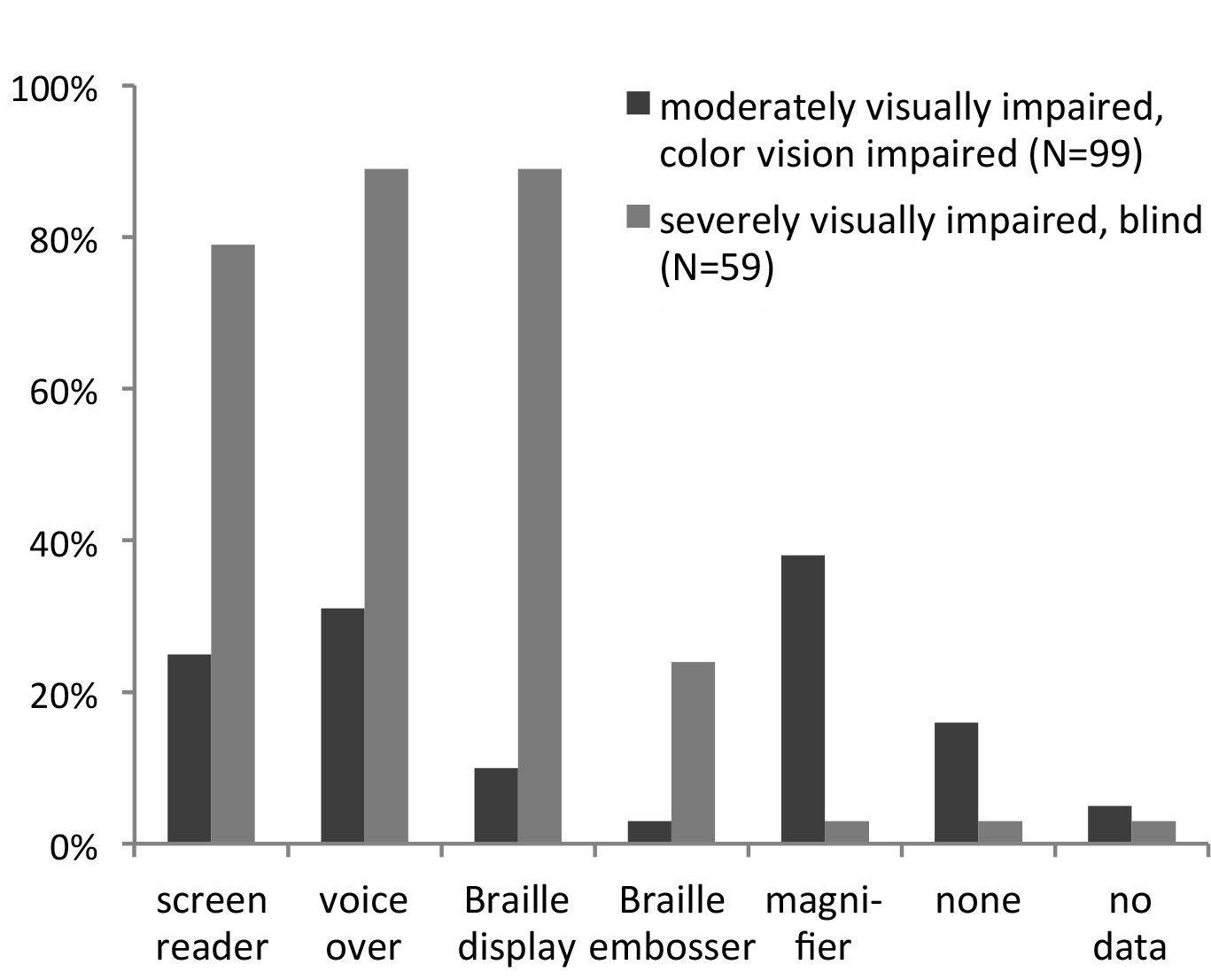

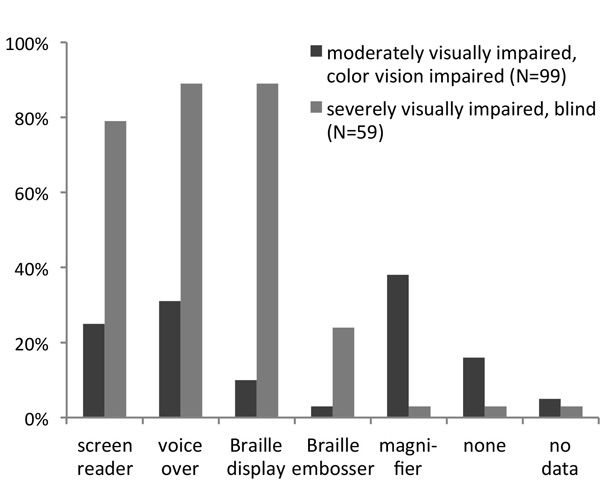

Use of assistive technology by the visually impaired (multiple responses)

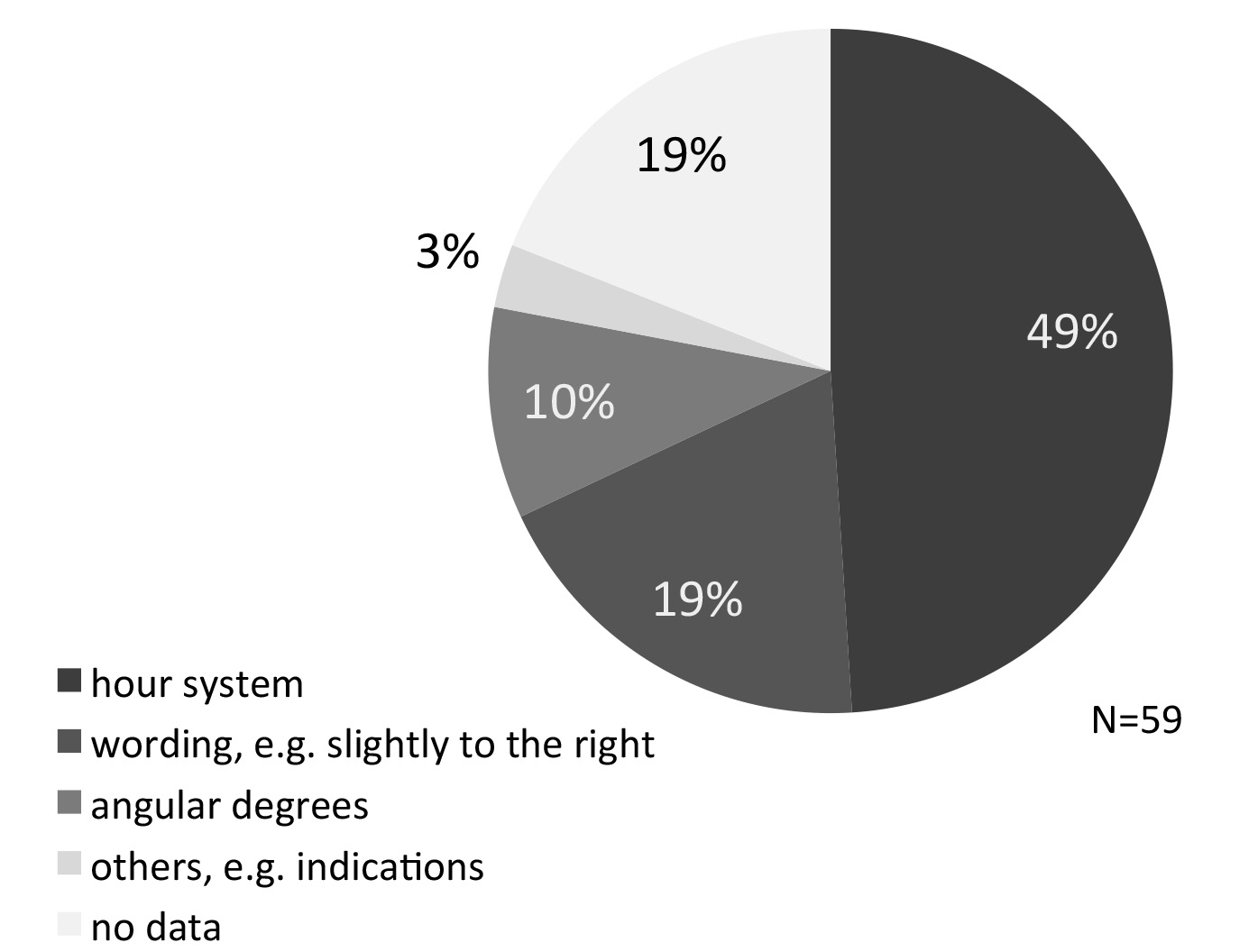

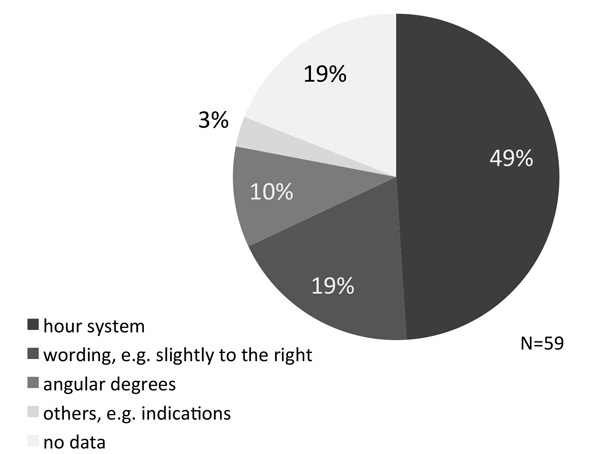

Preference regarding the description of directions (severely visually impaired and blind users)

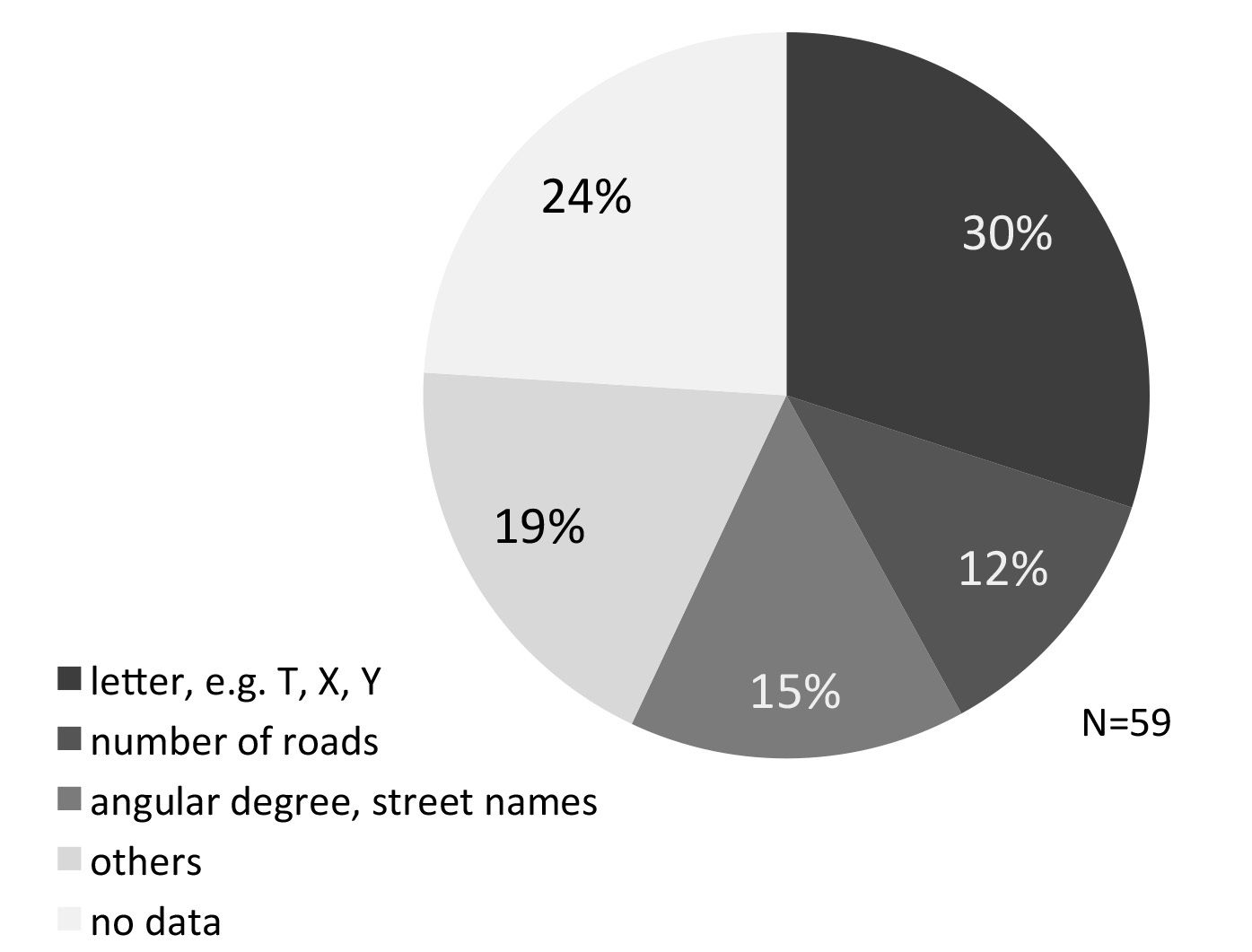

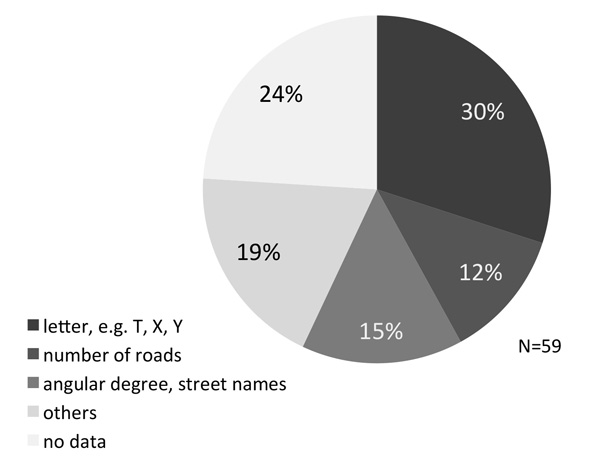

Preference regarding the description of crossings (severely visually impaired and blind users)

Figure 2. Selected results from the AccessibleMap project questionnaire.

Of the 197 managers of large protected areas to which the first senTour project questionnaire was sent, 68 responded. Collectively, respondents named more than 30 websites or web applications that in one or another way were directed to the target user group of the disabled and elderly. Examples included the websites of Lüneburger Heide Nature Park (Germany), Gesäuse National Park (Austria), Dümmer Nature Park (Germany), Harz National Park (Germany), Südschwarzwald Nature Park (Germany), and Eifel National Park (Germany). The second senTour project questionnaire, which was directed to web map users, received 129 valid responses. Table 5 gives a summary of respondents’ characteristics and Figure 3 presents selected results.

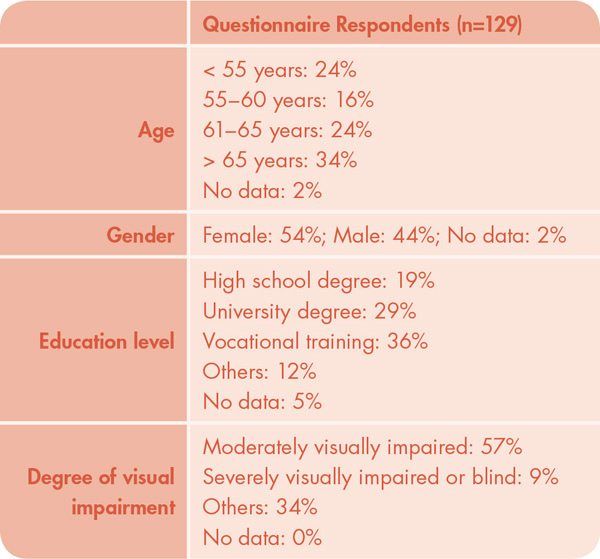

Table 5. Summary of respondents’ characteristics for the senTour project target group questionnaire.

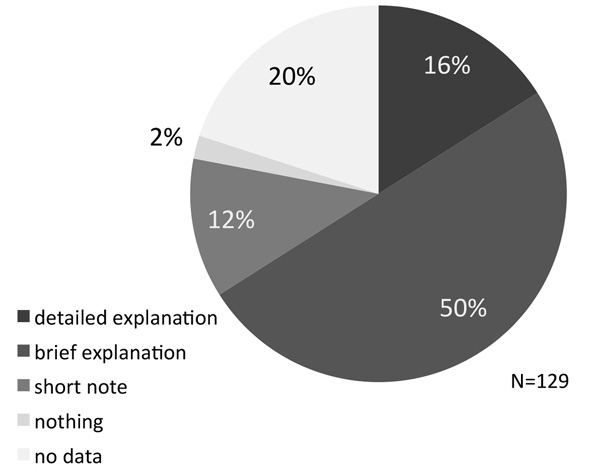

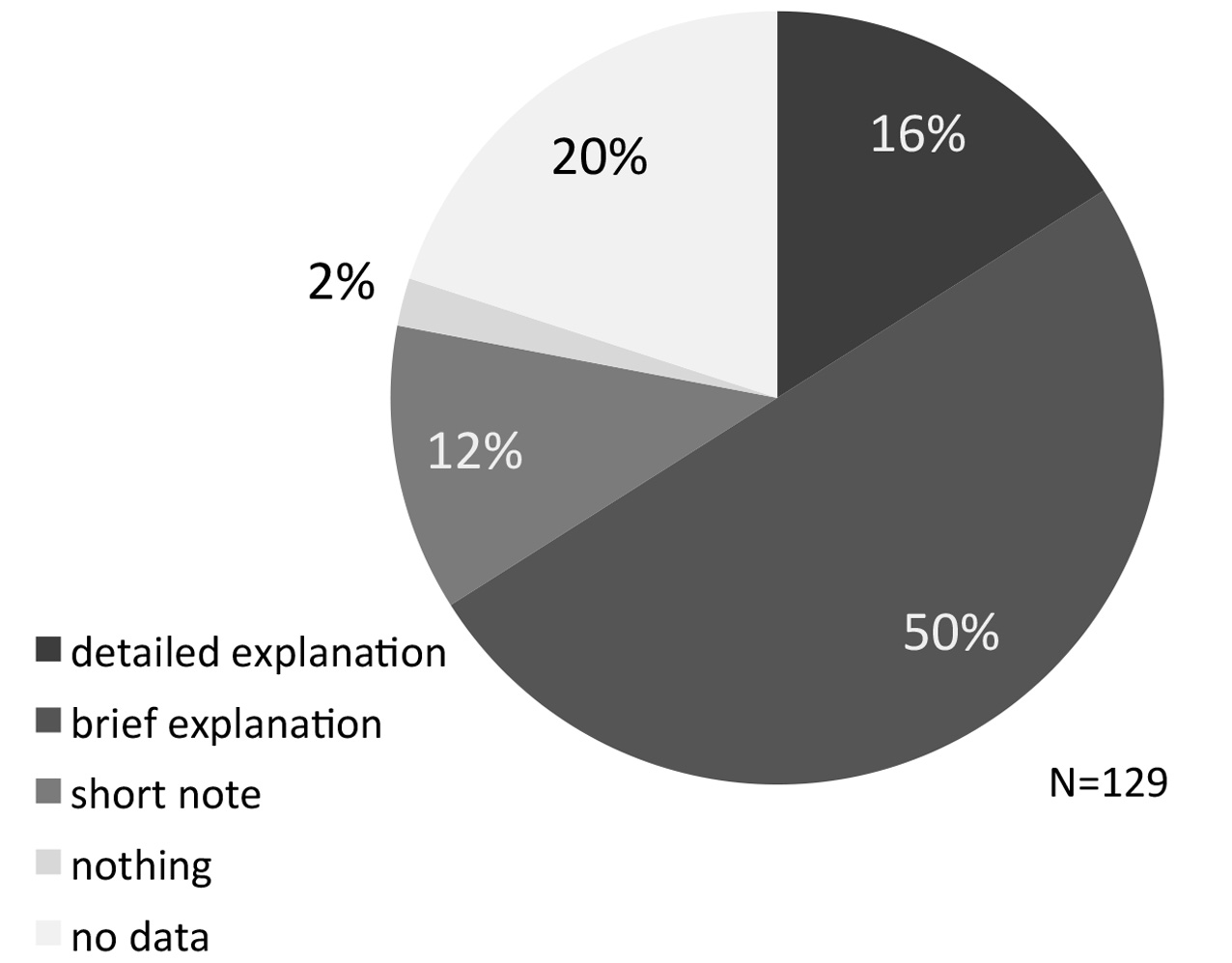

Preferences about the amount of information to be delivered

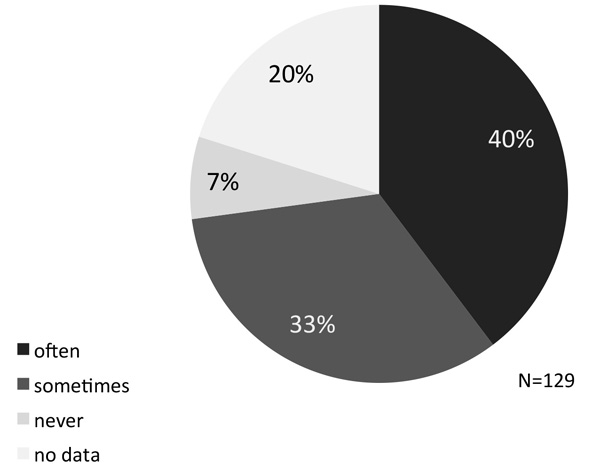

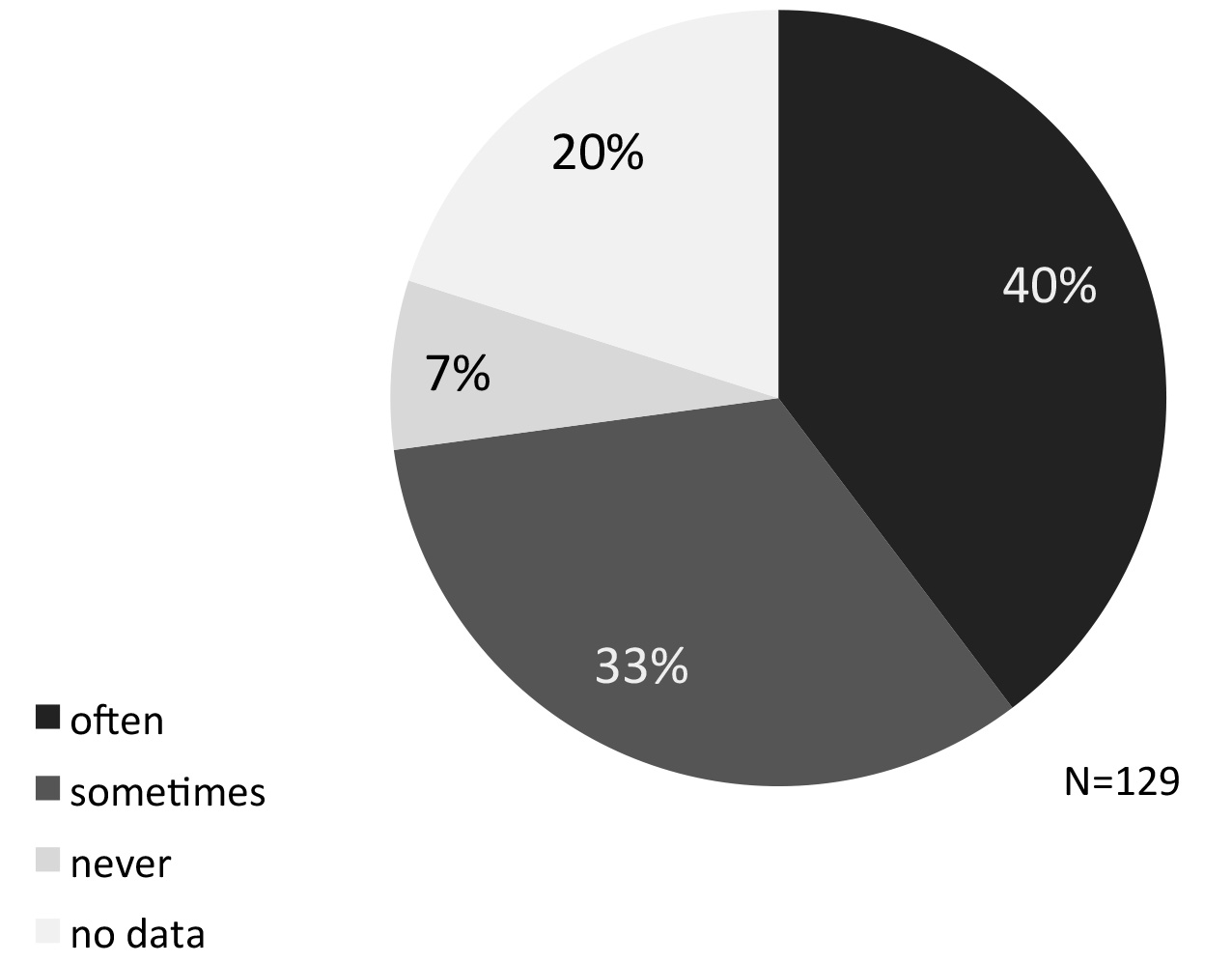

Use of the internet to get information to plan and prepare recreation trips

Figure 3. Selected results from the senTour project target group questionnaire.

BEST-PRACTICE EXAMPLES

The questionnaires and our internet research provided us information about web (map) applications that in one way or another met the needs of the target groups. Table 6 lists and describes those applications with components that can serve as a pattern or template for the development of web maps accessible to the visually impaired.

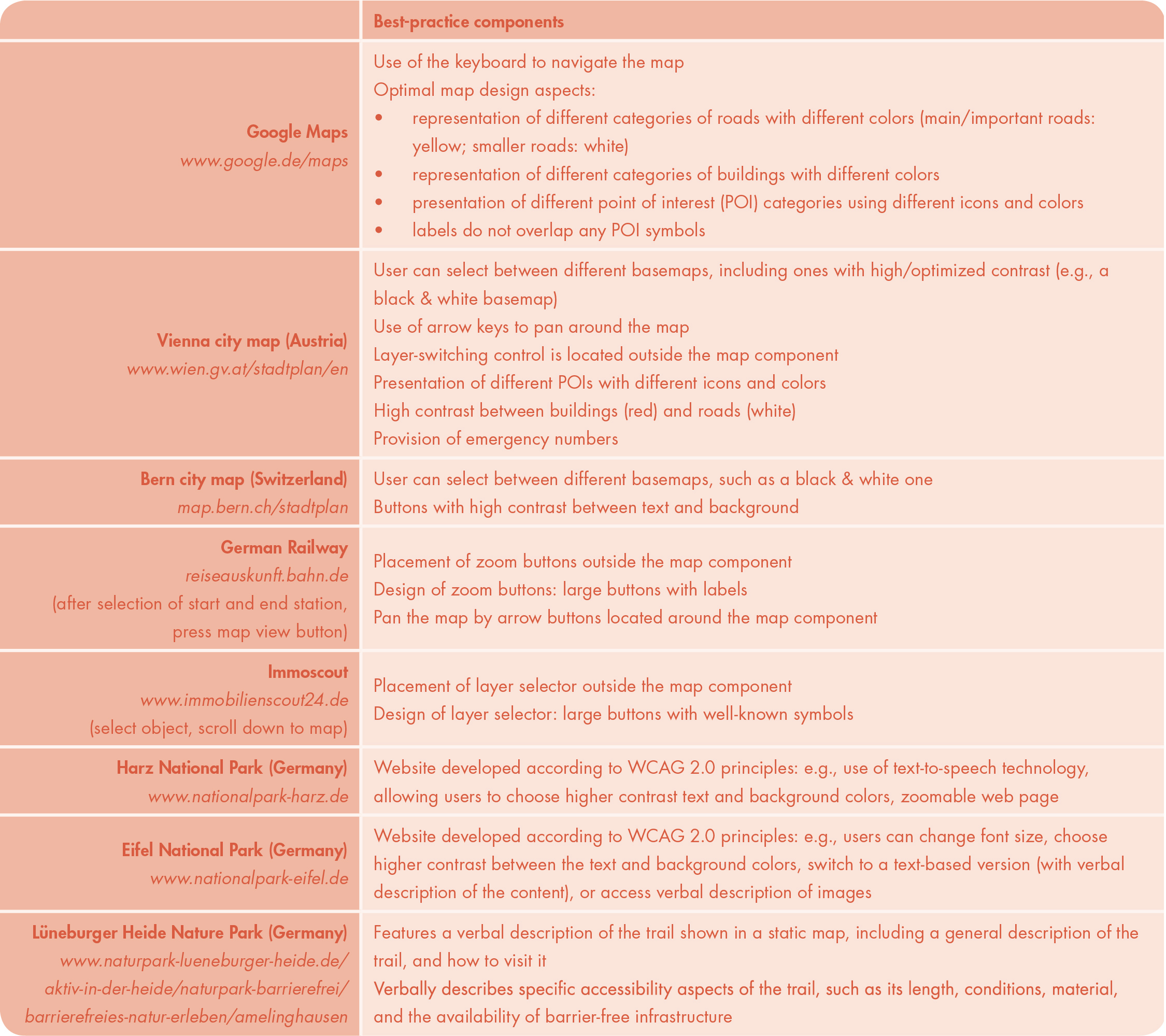

Table 6. Selection of web applications addressing the needs of the visually impaired in one way or another.

RECOMMENDATIONS FOR THE DEVELOPMENT OF WEB MAPS SUITABLE FOR VISUALLY IMPAIRED MAP USERS

As we discussed in our Introduction, visually impaired users face different problems when using web maps. These problems vary depending on the type and degree of their visual impairment. Accordingly, we offer different recommendations for the color vision impaired, the moderately visually impaired, and the severely visually impaired or blind (Table 7). These recommendations relate to user interface design, map design, interaction modes, and the verbal description of map content, each relevant in creating web maps accessible to these user groups.

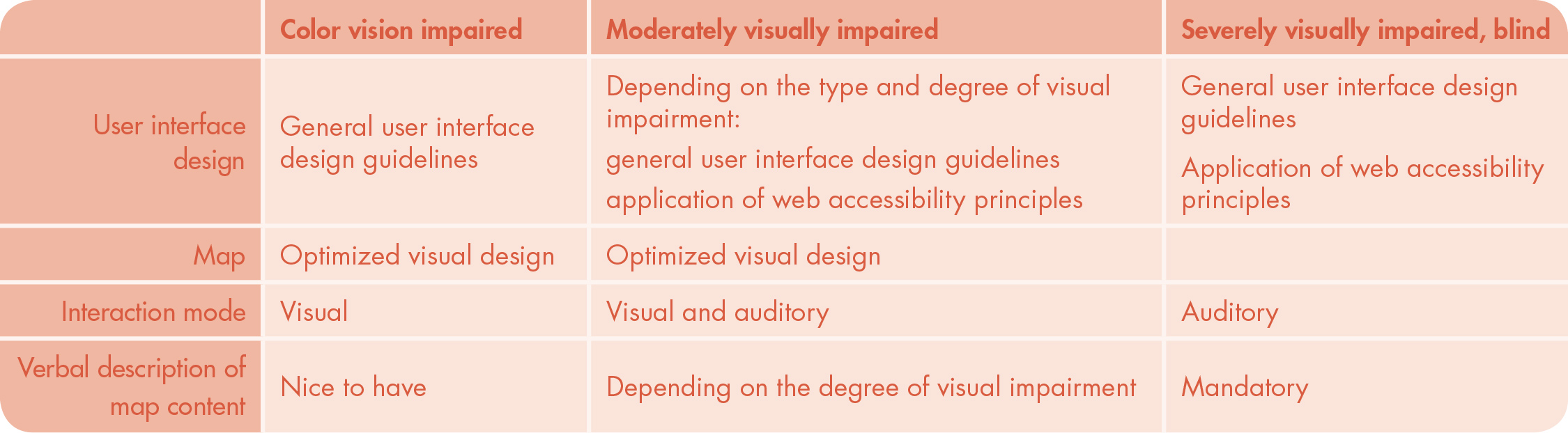

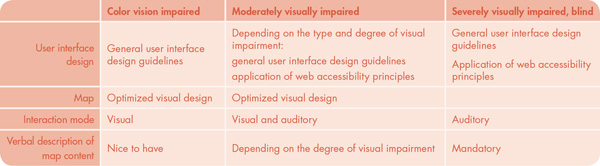

Table 7. Requirements for users with different types and degrees of visual impairment.

USER INTERFACE DESIGN AND STRUCTURE

As outlined by Tsou and Curran (2008), the user interface is the prime factor that decides the fate of any software application—in the worst case, even determining whether or not an application is used at all. For accessible applications and websites, an appropriately designed user interface is even more important (Hung 2001; Jacobson 1998; TTC 2013).

Web maps are a special kind of web application. Apart from elements common to other web applications, such as orientation and navigation tools, messaging systems, help components, and settings tools, web maps have a map component that is embedded in their graphical user interface (GUI). This map component itself also comes with several of its own elements: navigation tools for panning and zooming the map, feature pop-up windows, layer and basemap selectors, etc. Like the GUI, the map component (including its related elements) must be accessible and developed in line with user needs.

Arrangement of Components

To ensure an application is easy to use, its user interface should be kept simple and consistent, and follow a clear, predictable layout (Nielson 1994; W3C 2008). Achieving this involves the careful selection and arrangement of individual interface components. Since these components are usually linked to specific functions, user interface design depends on the range of functions implemented. In order to benefit the target group, user interface complexity can be decreased by considering the following guidelines (which mostly refer to the development of desktop GUIs):

• implement only as many control elements as necessary and as few as possible—check for unnecessary elements and remove them (Guenga et al. 2006);
• control elements with similar focus should be grouped with each other—but at the same time, avoid grouping too many elements at once (Pernice and Nielsen 2001; W3C 2008);
• locate control elements of the same type in the same place across similar programs (as is done, for example, by Microsoft Office applications) (W3C 2008);
• provide a flat and horizontally organized interface structure, with no dropdown or nested elements (Pernice and Nielsen 2001);
• avoid or reduce scrolling, so that all (critical) elements are visible and accessible without scrolling the screen (Pernice and Nielsen 2001); and
• avoid overlapping of elements (WAWG 2014).

The last point is particularly relevant for web maps. In these applications, basemap selectors and navigation tools are often placed within the map component, which makes it difficult for visually impaired users to read the map as well as to recognize and use control elements. Interaction tools (e.g., for zooming and panning, or selectors for basemaps and overlays) should be located outside the map component. They should not cover parts of the map. Taking into account the AoSS results (Table 6), Figure 4 illustrates an arrangement of the map component and related elements within the GUI that is optimized to support the visually impaired.

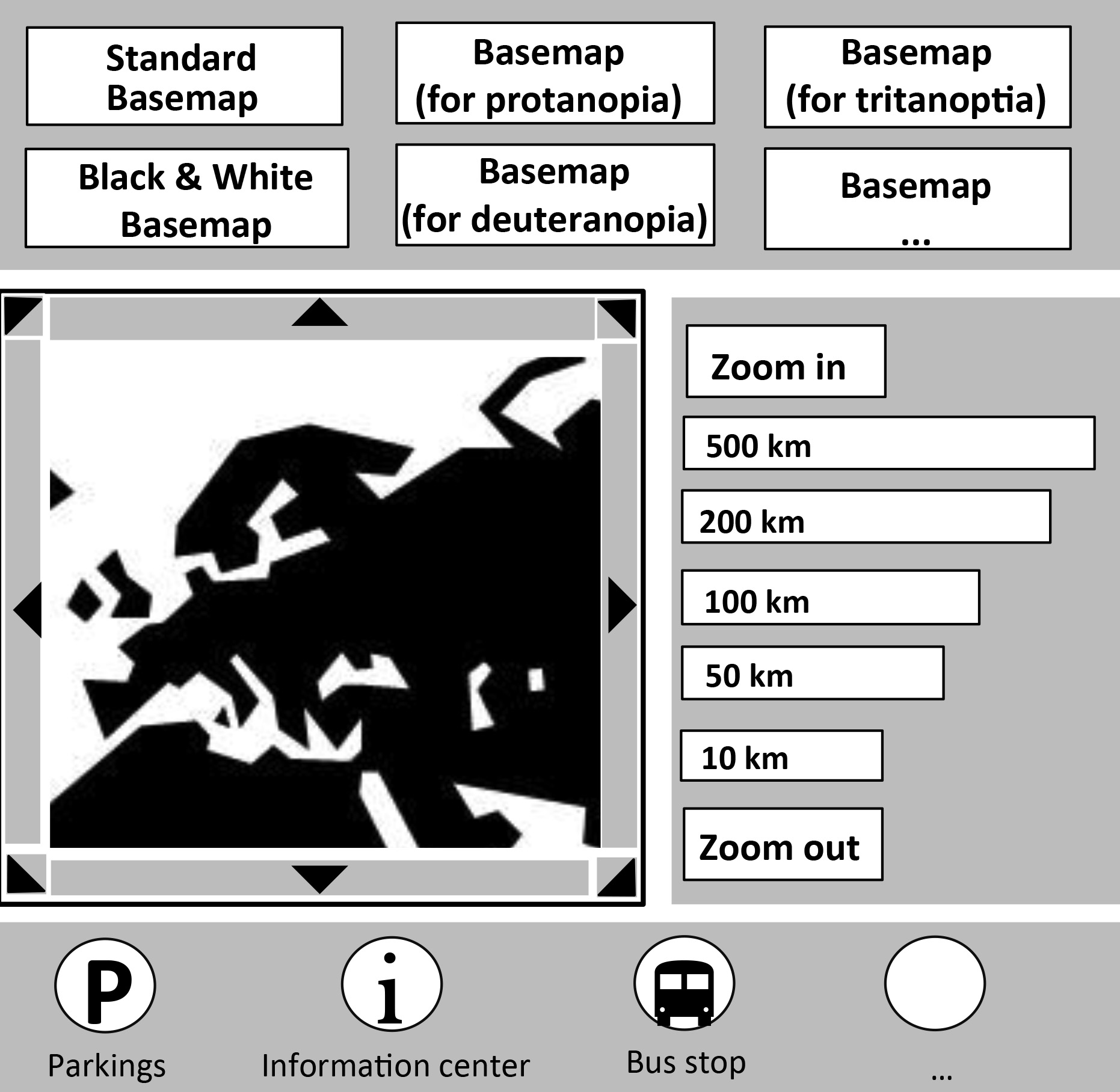

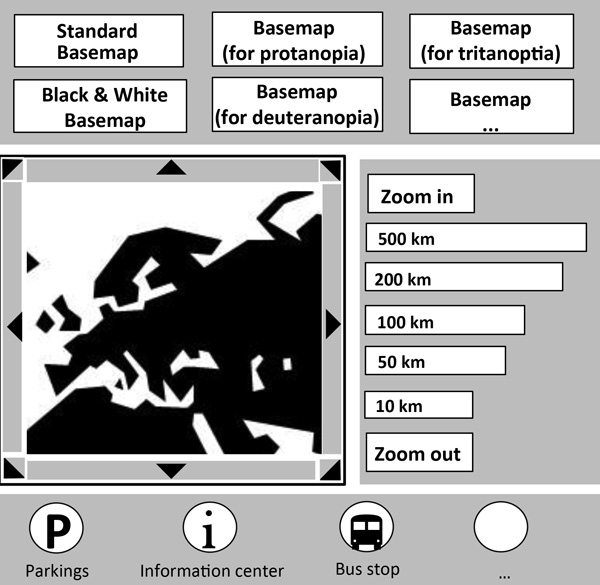

Figure 4. Sketch of a web map layout that is designed for easier access by the visually impaired.

VISUAL DESIGN OF COMPONENTS

An appropriate visual design for the user interface makes it easier for users to perceive, understand, and operate an application (ITU/G3ict 2014b). To assist users, interfaces and their components must be implemented at a suitable size. Likewise, colors should be chosen to provide high contrast between elements such as text, buttons, and checkboxes. Complex backgrounds, such as pattern fills, should be avoided. Symbols should be well known to users and intuitive to understand (ITU/G3ict 2014b; W3C 2008; Figure 4).

LANGUAGE USED

To make information accessible (i.e., understandable), the careful use of language plays an important role (W3C 2008). This is relevant not only to visually impaired users, but to all non-expert users of spatial data products. Hennig and Vogler (2016) state that laypersons often refuse to click buttons labeled with (technical) terms unknown to them; they instead close the application. Hence, all terms used throughout an application must be familiar to the users. Simple and user-focused language as well as consistent semantics should be used (W3C 2008).

MAP

A map that is as easy as possible to read increases success in communicating the content to the users (Kraak and Ormeling 2010). This is especially relevant for people with reduced vision or those affected by color vision impairments. A thoughtful choice of visual variables (size, shape, position, pattern, arrangement, and color) to create point, line, and area symbols can make the difference between a map being easy or difficult to read (Christophe and Hoarau 2012; Muehlenhaus 2014). The AccessibleMap project questionnaire results confirm the importance of visual variables in creating a visual design suitable for visually impaired users (Figure 2).

Hung (2001), as well as Jeffrey and Fendley (2011), suggest that size and color (e.g., no garish colors, but saturated and bright colors), and increased contrast settings between features such as buildings, streets, parks, places, points of interest, annotations, etc. are important aspects to consider in the appropriate presentation of map features to the target group. Since patterned areas and lines are easier to recognize and to distinguish than areas or lines with coloring only, Jenny and Kelso (2007) recommend combining coloring with simple patterns to enhance map readability. They also suggest that feature labeling (e.g., buildings, streets, parks, and rivers) is helpful for the user group to understand the map content. A selection of recommendations on the usage of visual variables for map features and text elements (labels, annotations, pop-ups, etc.) is listed in Table 8. These recommendations are not only important for building basemaps, but also for displaying overlays (such as points of interest) on maps.

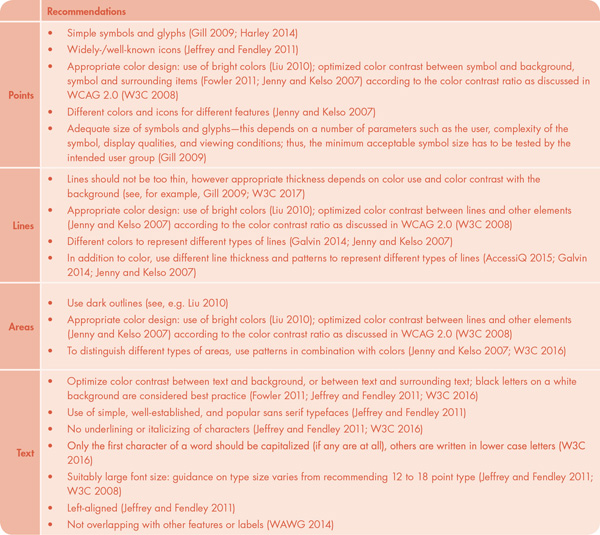

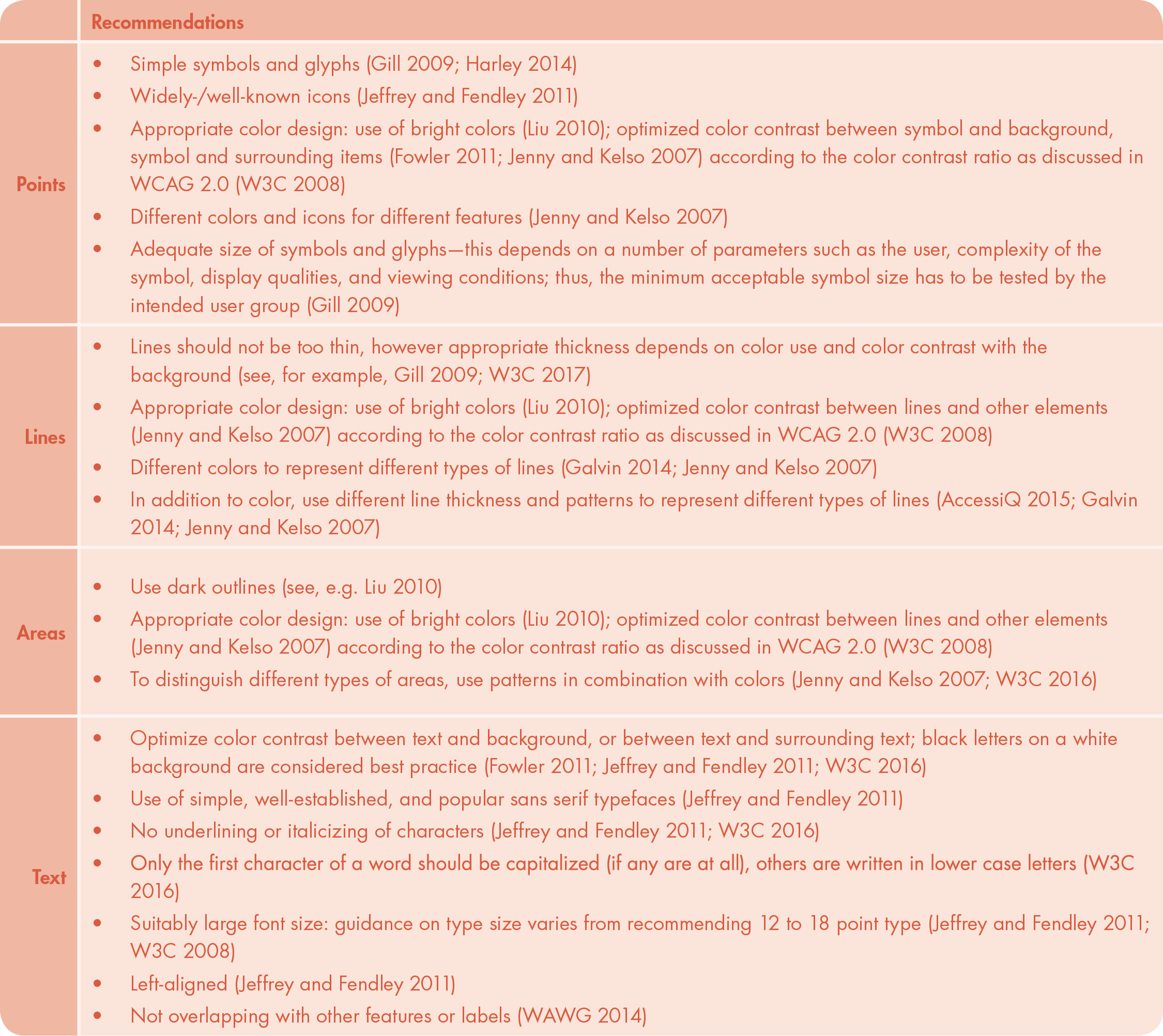

Table 8. Recommendations on how to employ visual variables to design a map suitable for visually impaired users.

One way to meet the (different) map needs of moderately visually impaired and colorblind users is to provide a set of basemaps from which the user can choose. Thus, for instance, the Vienna and Bern city web maps permit the user to switch between a standard basemap and a black and white version. The high contrast between black and white makes these basemaps particularly useful for visually impaired users. To optimize color contrasts, color contrast ratio and related recommendations are useful (for instance, those presented in detail in W3C [2008]). Finally, tools such as ColorBrewer (colorbrewer2.org), Color Oracle (colororacle.org), or Color Contrast Checker (webaim.org/resources/contrastchecker) can be used to create and test color vision impaired-friendly designs.

Due to the different types and degrees of visual impairment, the literature suggests permitting user adjustment of contrast, symbol size, line width, color combinations, and color brightness (Andrews 2007; Jeffrey and Fendley 2011). This is confirmed by the AccessibleMap questionnaire results (Figure 2): 77 % of the respondents would prefer to be able to adjust one or more visual variables in the map themselves.

INTERACTION MODES

Currently, user interfaces are usually implemented as GUIs. The users interact with the system through menu bars, icons, and windows; these interactions are handled by input devices such as mice, keyboards, or touchscreens. Information is returned as a graphical display on the device’s screen. Since GUIs rely heavily on the visual sense, people who are severely visually impaired or blind are at a disadvantage. However, supporting keyboard accessibility, as well as using assistive technology, can be pivotal to a solution.

KEYBOARD ACCESSIBILITY

Keyboard accessibility is important for improving the operability of web maps for visually impaired users (Langen and Ballantyne 2014; Victorian Government 2011; W3C 2008). Many severely visually impaired and blind users typically use a keyboard to navigate applications. Even for users who are partially sighted, the use of a keyboard provides easier access to web content (WebAIM 2016). In addition to addressing frequently relevant aspects of keyboard accessibility, such as the provision of focus indicators or the definition of a navigation order (WebAIM 2016), map control elements must be designed and implemented in a particular way. Map navigation tools should provide pre-defined, discrete zoom and pan steps that are tied to keyboard shortcuts, permitting the user to navigate around the map without using a mouse. In Google Maps, for example, to move the map north or south in small steps, the arrow-up or -down keys can be used; to move the map north or south in large steps, the page-up or -down keys can be used (Table 6).

ASSISTIVE TECHNOLOGY

Assistive technology refers to any object or system directed toward aiding people with disabilities in interacting with their environment, in communicating with others, and in accomplishing a variety of tasks. With regard to digital products, assistive technology refers to technology that supports users in accessing and using software applications and websites (W3C 2008).

Among existing assistive technology tools for the visually impared, voice output, screen readers, Braille displays, and magnification software are the most popular (Bártek and Kopeček 2006; Leporini and Paternò 2008). The importance of assistive technology for our target group is confirmed by the results of the AccessibleMap questionnaire (Figure 2): among moderately visually impaired users, magnifier software is used most frequently (38%), while the severely visually impaired and the blind primarily use Braille displays (89%), voice-over (89%), and screen reader software (79%).

Screen magnification is relatively easy to implement using existing software tools (such as Virtual Magnifying Glass) or custom-programmed solutions (using, for example, JavaScript libraries).

In contrast to this, Braille displays, screen readers, and voice-over software require specific applications to be installed by the user. If needed, external devices such as Braille displays must also be available. To support these options, text alternatives for every non-text element (including the map itself) must be available. Depending on the tool, text alternatives are read aloud (screen reader, voice-over) or are delivered as tactile output (Braille display). Very short verbal descriptions (~125 characters) of images, including embedded static web maps, are usually provided using the ALT-attribute/ALT-tag in HTML (Nielsen 1996; Penn State Accessibility 2015b). To deliver more detailed descriptions of non-text elements than the ALT-tag can offer, or to provide any kind of verbal information about dynamic/interactive web maps, text can be presented in separate components (such as additional browser tabs) related to the map (Table 6: Lüneburger Heide Nature Park; Eifel National Park).

VERBAL DESCRIPTION OF THE MAP'S CONTENT

As outlined in the literature, maps (as well as other non-text elements such as images or diagrams) should be provided with both a brief, sentence-length description as well as a more detailed one (Penn State Accessibility 2015a; Victorian Government 2011; W3C 2008). The availability of a brief explanation was considered particularly important by the majority of senTour project user questionnaire respondents (Figure 4).

A short comment about the map’s content can usually be created without any difficulty, since it is usually a simple and static text element that delivers a general overview of the map and its content via the use of the ALT-tag. In contrast to this, writing a more comprehensive verbal description of (interactive/dynamic) map content is a challenge (see, for example, Ferguson and Hegarty 1994; Jacobson 2002): apart from information about individual features (“bus stop,” “street,” “crossing,” etc.), a holistic overview of an area of interest has to be given. This must include information about the relationships and distances between different elements (for example, “this shop is located on Main Street; it is twenty meters away from the intersection of Main Street and 3rd Avenue”).

AMOUNT OF INFORMATION

Since people usually can only remember a limited number of things at a time (on average seven, according to Nielsen [2009]), the amount of information an application delivers must be in line with this. Users should not be overloaded with too much detail. Detailed descriptions should focus on certain locations (e.g., selected by the user or at the user’s current position; Giudice et al. 2007).

Here, to understand an entire map, a user can start at a selected location and then move virtually along streets or trails, receiving information about each section along the way (Figure 5). As the user moves around the map, step by step, a comprehensive description of its content is given. This enables the user to explore the map gradually and to build up a cognitive map of an area without using the visual sense.

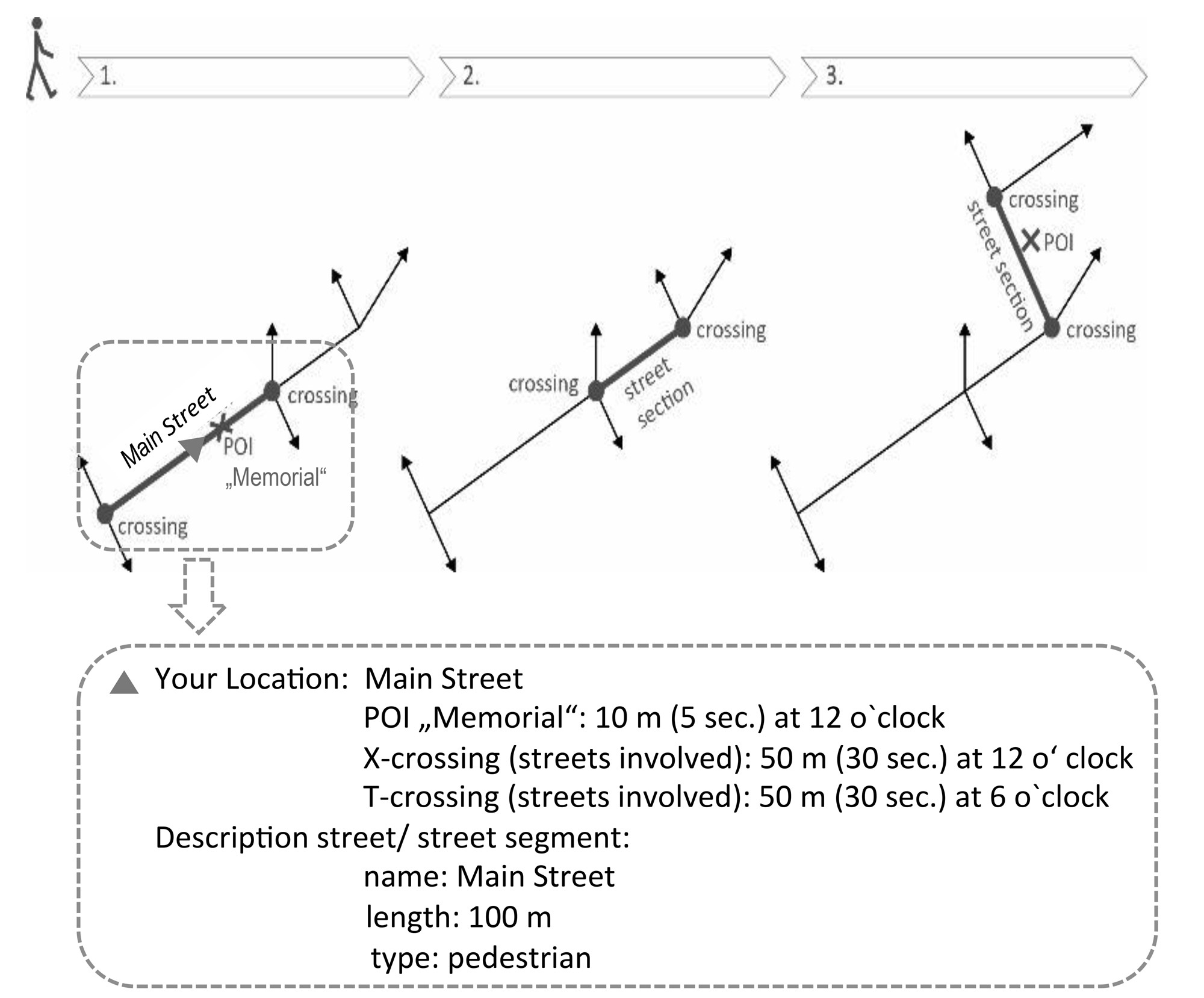

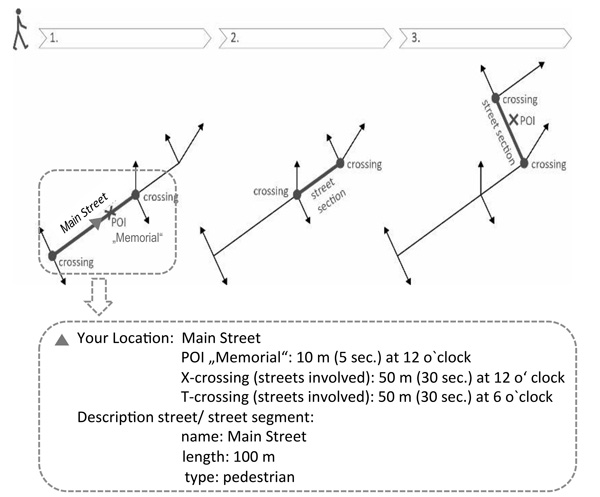

Figure 5. Example approach to deliver a verbal description of the map content (adapted from Wasserburger et al. 2011).

ORDER OF INFORMATION

The order in which information is presented should be in accordance with its relevance to the user, prioritizing key elements for the construction of a cognitive map such as reference points or cues (landmarks) first, and second, paths, streets, or trails (Ferguson and Hegarty 1994; Millonig and Schechtner 2005; Tversky 1993). This approach is particularly important for people who are blind, since they usually walk linearly along a chain of orientation points. However, the landmarks, orientation points, and points of interest used by the blind are often different from those of the sighted. The blind consider elements such as acoustic traffic lights, tactile guiding systems, or type of pavement to be relevant (Ienaga et al. 2006; Jacobson 1998).

INFORMATION ON DISTANCE AND DIRECTION

Distance information should be provided using both metric and walking time measurements (Kalia et al. 2010). Information on direction should be provided based on using body-orientation indications (left, right, forward, backward, etc.), the cardinal points system (north, south, east, west), or the hour system. The hour system uses a metaphor to indicate directions: the user is imagined to be in the center of an analog clock, with 12:00 to their front, 3:00 to their right, 6:00 directly behind them, 9:00 to their left, and so on (Sánchez and Torre 2010). The AccessibleMap project questionnaire’s results underline the hour system’s relevance for describing directions: 49% of the respondents prefer it (Figure 2). The AccessibleMap questionnaire respondents also preferred pedestrian crossing layouts to be described using letters (e.g., T-, V- or X-crossing; Figure 2).

Today, verbal descriptions of map content can often be generated automatically using spatial databases and geographic information systems. This allows the description to be adapted whenever the user selects a new location on the map, or whenever the map content changes due to user interactions (zooming, panning, switching layers, etc.).

ADDITIONAL CONSIDERATIONS FOR INCREASING ACCESSIBILITY

The work conducted in the AccessibleMap and senTour projects allowed us to not only develop recommendations about what to consider when creating web maps that are accessible to the visually impaired, but also made it obvious that additional aspects should be considered to enable these users to benefit fully from web maps.

ACCESSIBILITY AND RELATED CONCEPTS

As we discussed above, web accessibility focuses on the removal of technical barriers that might hamper people with disabilities from accessing information. However, it does not explicitly address other, equally important considerations. Accessibility alone is not enough: usability, utility, and compatibility must additionally be considered (Table 9). Together, these four concepts, which are closely intertwined with each other, provide a framework of characteristics for products that aim to be well suited for disabled users (ITU/G3ict 2014a; ITU/G3ict 2014b; Leporini and Paternò 2008). In consequence, the concept of accessibility must be considered broadly.

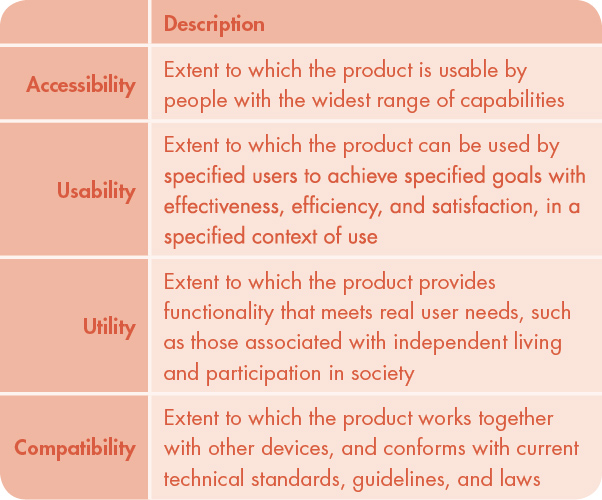

Table 9. Criteria closely linked to accessibility (based on ITU/G3ict 2014a).

The terms usability and accessibility are closely related, but each has a different focus, though their objectives, approaches, and guidelines overlap significantly. Krug (2006) suggests that a website (or any product) is not usable unless it is accessible, and Brajnik (2000) stresses that accessibility is a subset of usability.

The same is true for utility and compatibility: websites and web applications must not only be accessible, but they must also provide content, functionality, and access to devices relevant to its users. Thus, for instance, our intended user group requires functionality that permits the use of assistive technology. Further, apart from the information commonly found in web maps (e.g., streets, places, buildings, parks, and rivers; Horstmann et al. 2006), visually impaired users require information on specific infrastructure (e.g., guidance systems, accessible parking, toilets, and public transportation) and feature characteristics (i.e., tactile, audible, and smellable). Such elements play a particularly important role in helping the blind to orient themselves in physical space and to engage in wayfinding (Ienaga et al. 2006; Karimi et al. 2014).

DIGITAL AND SPATIAL LITERACY

The questionnaire results obtained in the AccessibleMap and senTour projects highlight the widespread usage of information and communication technology (ICT) among the target group: the majority of the AccessibleMap project questionnaire respondents indicated they use desktop PCs, laptops, smartphones, and tablets, and that they use the internet several times a day (Figure 2). The senTour project target group questionnaire showed that 73% of the respondents use the internet to get information about recreation or tourism (Figure 3). These results are consistent with the findings of Harris (2010), who stated that disabled people engage enthusiastically with technology.

Despite their high usage of ICT, the target group considered the use of the internet and of web maps to be a complex task (Höckner et al. 2012). In this context, Guenga et al. (2006, 287) suggest that “better skills using technologies and ICT, make a big difference.” Here, “skills” refers to digital skills and competencies that enable users—who today are acting as prosumers (both consumers and producers) of spatial data (Rinner and Fast 2015)—to handle web maps in a competent and capable manner (Table 10). Measures to foster these skills, which are still often missing in society, are desired, including appropriate user support, help and tutorials, as well as education and training opportunities. It is widely accepted that such measures to strengthen spatial literacy are equally important as providing accessible applications (Hennig et al. 2013).

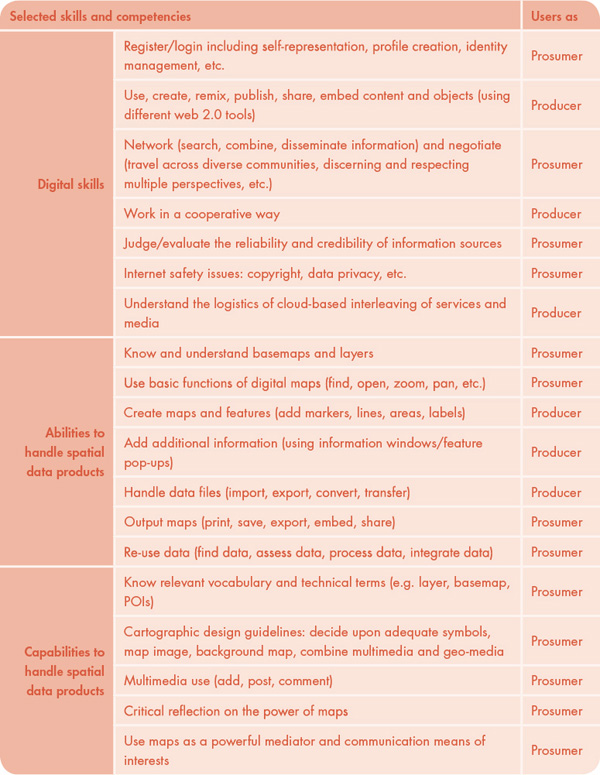

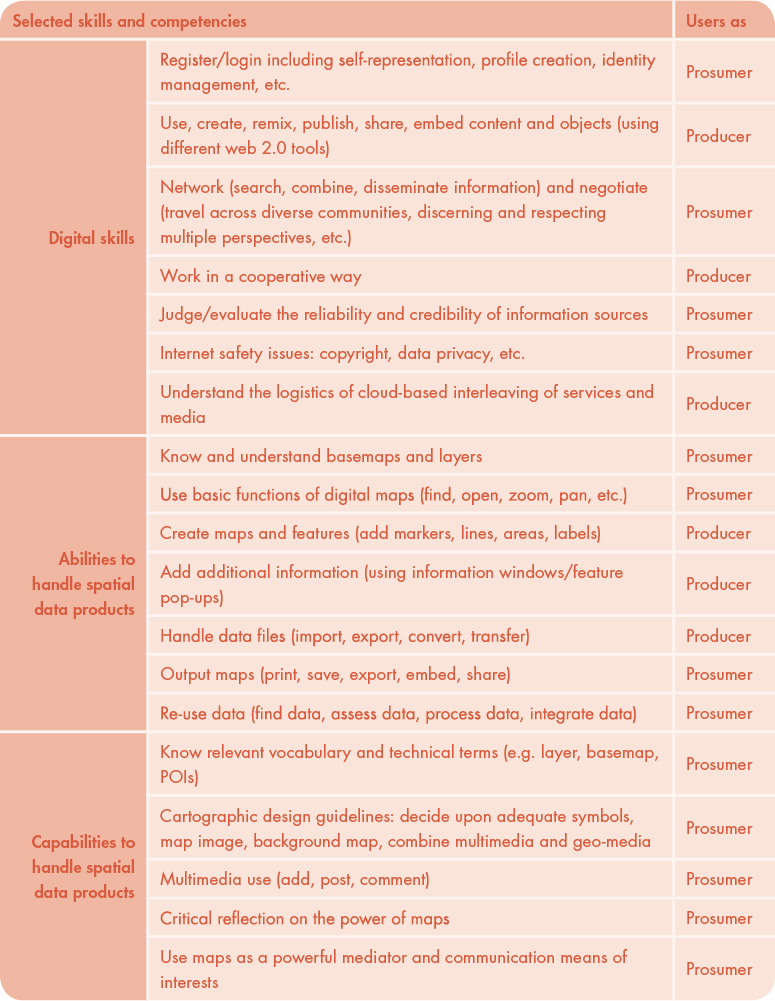

Table 10. Selected skills allowing users to use spatial data and spatial data products in a competent and capable manner (adapted from Hennig et al. 2013).

PARTICIPATORY DESIGN

The methods used in the AccessibleMap and senTOUR projects—literature and internet review, user survey, AoSS, and stakeholder involvement (Figure 1)—are well-recognized in software engineering and requirements engineering. But, applying them might not be enough to gain a profound understanding of users. Reasons include communication problems between users and developers (misunderstandings, use of different vocabulary, etc.), users’ lack of awareness of their own needs, and users’ lack of ability to reliably describe their requirements (Firesmith 2007; Hennig and Vogler 2016). Direct and active cooperation with future users in the application development process can be seen as a remedy to these shortcomings, using the approach of participatory design.

Participatory design is defined as a process that aims at involving representatives of future users in the design and development process of a system or product. This can occur in different ways and with varying intensity (Baek et al. 2007). A distinction is made between weak and strong participatory design: in weak participatory design, even though user input is solicited throughout the entire development process, decision making is largely undertaken by the developers. In strong participatory design, the users take part in decision making. Detailed information on participatory design can be found in the literature (see, for example, Enerson 2013; Mazzone and Read 2005; Steen et al. 2007).

Several advantages of participatory design are laid out in Table 11. Because users are experts in their own requirements, participatory design exposes user needs and skills (as tacit knowledge: aspects usually not known to developers) and brings them into the development process. This helps to generate applications that better adhere to users’ aims (Muller and Druin 2012; Steen et al. 2007), which is particularly relevant for the development of web maps that address laypersons and/or special needs users such as disabled people, the elderly, and children. Tsou (2003) stresses that the developers of web maps are challenged with meeting the needs of non-experts, who are a lot more diverse and unfamiliar to the developers than are traditional GIS users. Hennig and Vogler (2016) further explain that special needs users, including visually impaired users, are even more unknown to web map developers. Thus, the participatory design approach can play a critical role in the development of accessible web maps.

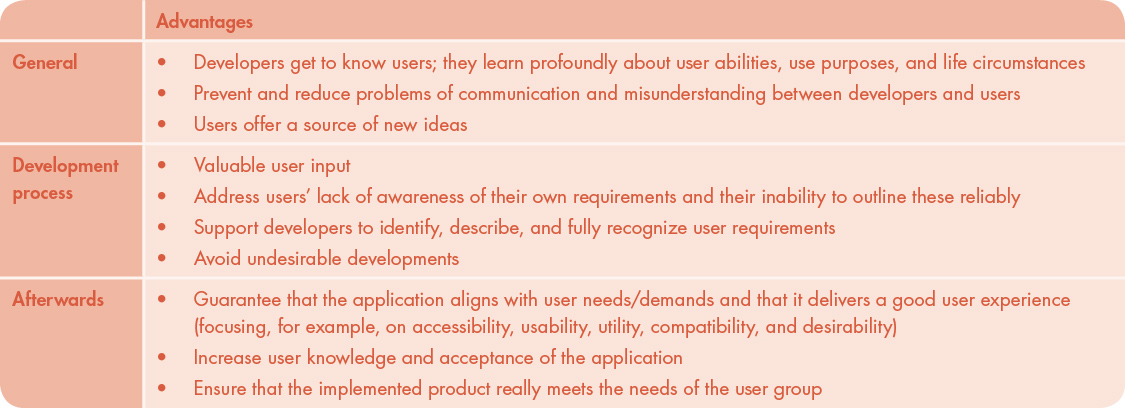

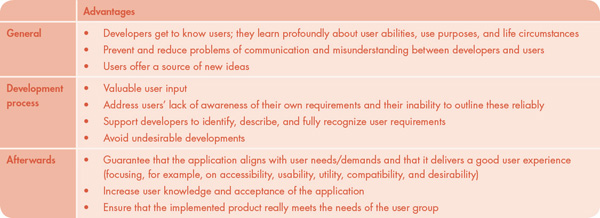

Table 11. Selected advantages of participatory design (Hennig and Vogler 2016).

CONCLUSION AND OUTLOOK

The use of web maps is as important for the visually impaired as it is for sighted people, and sometimes it is even more important. Having access to spatial information regarding unknown areas allows them to plan and prepare trips in advance; this can lead to a more independent life. Since accessible web maps enable everyone to benefit from ICT, including the internet, these applications can be seen as a contribution towards e-inclusion, and strengthening the information society.

Even though visually impaired users may require special solutions depending on the type and degree of their visual impairment, the following recommendations are of general interest when developing web maps accessible to them: provide an easy-to-use and well-designed user interface with a well thought out range of implemented functions; create an easy-to-read map picture; support different interaction modes (including use of assistive technology); and give a verbal description of the map content.

Due to these issues web maps accessible to visually impaired users are different from conventional web maps. They feature added flexibility, alternative modes, and more choices for their users. But making web maps accessible to disabled users does not mean that they become any less useful for others. To the contrary, increased accessibility often results in improved design for everyone, as it makes applications easier to use and more attractive.

In support of building applications tailored to the visually impaired, several standards and guidelines exist, but there are very few recommendations that provide guidance on creating accessible web maps specifically. This gap needs to be filled. We refer not only to the provision of these recommendations, but also to the elaboration of design patterns, and describing and presenting best-practice solutions, which should be evaluated by experts and target groups. Having such information at hand would be helpful to developers who are designing and implementing accessible web maps.
